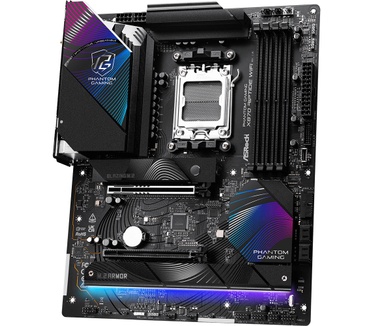

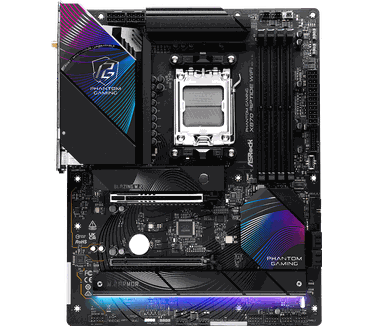

ASRock X870 Riptide WiFi

Populaire specificaties
Socket	AM5
Moederbordchipset	AMD X870
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	AM5

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	AMD X870

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	256GB
Overklokprofielen	AMD EXPO, Intel XMP
Opmerkingen geheugen	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	3x
Raid-modi	0, 1, 10
Opmerkingen opslag	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x M.2, 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Killer E3100G
Netwerkcontroller(s)	Killer E3100G

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.4

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header

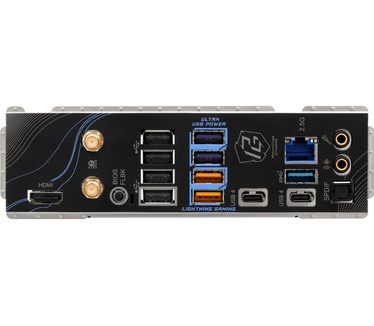

USB/TB extern	3x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 2x USB 4 (Gen 3x2, 40Gbps)
Video uit	1x HDMI, 2x USB type-C
Totaal video-uitgangen	3
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Opmerkingen aansluitingen	USB32_12 are Lightning Gaming Ports USB32_34 supports Ultra USB Power 2 x USB4 Type-C Ports supports USB PD 3.0 up to 5V@3A (15W)

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)
(default) Fanconfiguratie	- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield

Audio
Audio-aansluitingen	1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC4082

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	80A
Aantal VCore-powerstages	14x
Rating VCore-vrm	1.120A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASRock X870 Riptide WiFi
Categorie	Moederborden
Merk	ASRock
Tweakers ID	2113504
EAN	4710483949357
SKU	90-MXBPP0-A0UAYZ, X870 Riptide WiFi
Specs van de fabrikant	Productinformatie

Testrapport uit het Tweakers Testlab

Lees meer over hoe Tweakers producten test.

Testcondities
Processor	AMD Ryzen 9 9950X Boxed
HDD / SSD	WD Black SN770 1TB
vBIOS	3.06
Koeler	Alphacool Core Ocean T38 AIO 360mm
Behuizing	Fractal Design Define 7 XL

Moederbord VRM test - AM5 - 2024
Cinebench 2024 MT - Gem. na 15 min.	2.166 punten
Cinebench 2024 MT - Std. afwijking	22 punten
Cinebench 2024 MT - Gem. kloksnelheid na 15min.	5.036 MHz
AIDA64 - CPU Temp. na 15 min.	76,0 °C
AIDA64 - CPU package power max.	200,9 watt
Max. VRM temp. na 15 min. - FLIR	52,4 °C
Max. VRM temp. na 15 min.	52,4 °C

Moederborden - Stroomgebruik 2024
Energiegebruik - Idle - ATX - 12V	3,70 watt
Energiegebruik - Idle - ATX - 5V	17,09 watt
Energiegebruik - Idle - ATX - 3V	3,68 watt
Energiegebruik - Idle - EPS	26,60 watt
Energiegebruik - Idle - CPU (EPS+ATX12V)	30,30 watt
Energiegebruik - Idle - ATX + EPS	51,07 watt
Energiegebruik - Cinebench 24 - ATX - 12V	16,30 watt
Energiegebruik - Cinebench 24 - ATX - 5V	29,35 watt
Energiegebruik - Cinebench 24 - ATX - 3V	3,80 watt
Energiegebruik - Cinebench 24 - EPS	189,79 watt
Energiegebruik - Cinebench 24 - CPU (EPS+ATX12V)	206,09 watt
Energiegebruik - Cinebench 24 - ATX + EPS	239,24 watt
