Specificaties
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870E -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) -
Ethernet (RJ45)
2x Ethernet 5Gbps
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870E -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) -
Ethernet (RJ45)
2x Ethernet 5Gbps
Verkrijgbaar sinds: 14 februari 2026
Alles openen
Socket en CPU
-
Socket
AM5
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X870E
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
256GB -
Overklokprofielen
AMD EXPO, Intel XMP -
Opmerkingen geheugen
Support for DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
Support for DDR5 5200/4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Opslag
-
Hardeschijf bus (intern)
2x M.2 (PCI-e 4.0 x4), 2x M.2 (PCI-e 5.0 x4), 4x SATA-600 - Aantal M.2 heatsinks 4x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 4.0 x16, 2x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode
* The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Netwerk
-
Ethernet (RJ45)
2x Ethernet 5Gbps - Netwerkcontroller Realtek RTL8126
- Tweede netwerkcontroller Realtek RTL8126
- Netwerkcontroller(s) RTL8126
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) -
Bluetooth
Bluetooth 5.4
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
-
USB/TB extern
3x USB 3.2 (Gen1, 5Gb/s) type-A, 5x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C, 2x USB 4 (Gen 3x2, 40Gbps) -
Video uit
2x HDMI, 2x USB type-C - Totaal video-uitgangen 4
- Hoogste HDMI versie HDMI 2.1
- Hoogste DisplayPort versie DisplayPort 1.4
- Overige aansluitingen 1x TPM header
-
Opmerkingen aansluitingen
1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
(Fan) headers
- Headers (fan/water) 8x 4-pins (totaal)
RGB
- RGB-headers 3x 3-pins (ARGB), 1x 4-pins (RGB)
-
LED verlichting
Overige eigenschappen
- Onboard knoppen Clear CMOS, Power, Reset
- Eigenschappen moederbord BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC1220-VB
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
60A -
Aantal VCore-powerstages
16x -
Rating VCore-vrm
960A -
Vrm-koeling
Heatsink (passief)
Garantie en bijzonderheden
- Kleuren Bruin, Wit
- Fabrieksgarantie 3 jaar carry in
Meer informatie

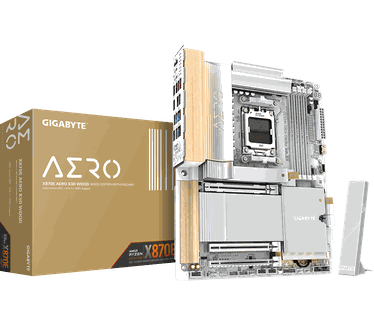

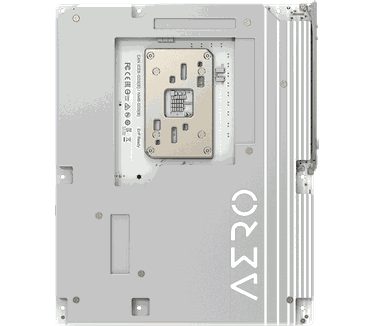

- Product Gigabyte X870E AERO X3D Wood
- Categorie Moederborden
- Merk Gigabyte
- Serie AERO
- Tweakers ID 2299224
- EAN 4719331878481
- SKU X870E AERO X WOOD
- Specs van de fabrikant Productinformatie
