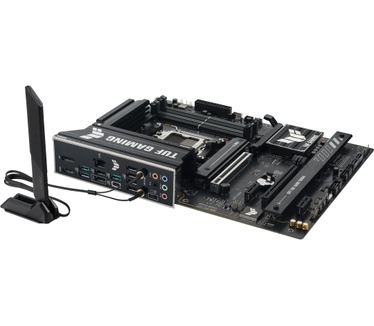

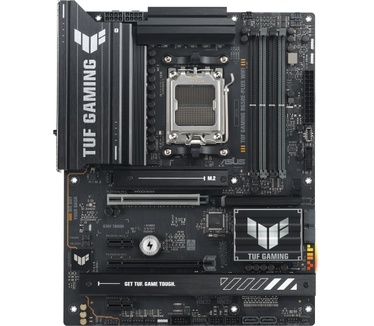

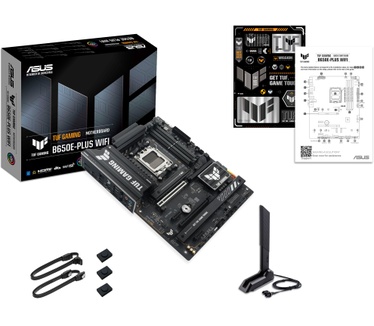

ASUS TUF Gaming B650E-PLUS WIFI

Populaire specificaties
Socket	AM5
Moederbordchipset	AMD B650
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	AM5

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	AMD B650

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	256GB
Compatible modules	ECC
Overklokprofielen	AMD EXPO
Opmerkingen geheugen	Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	3x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B650 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 4.0 x1, 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** 2 x PCIe 4.0 x1 slots *** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Realtek (variant)
Netwerkcontroller(s)	Realtek (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.3

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt header, 1x USB-C 3.2 (G2, 10Gbit/s) header
USB/TB extern	6x USB 2.0 type-A, 3x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x Serieel (header)

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)
(default) Fanconfiguratie	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers

RGB
RGB-headers	3x 3-pins (ARGB)
LED verlichting

Overige eigenschappen
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC1220P

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	80A
Aantal VCore-powerstages	12x
Rating VCore-vrm	960A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASUS TUF Gaming B650E-PLUS WIFI
Categorie	Moederborden
Merk	ASUS
Serie	TUF Gaming
Tweakers ID	2202312
EAN	4711387995488
SKU	90MB1M20-M0EAY0, TUF GAMING B650E-PLUS WIFI
Specs van de fabrikant	Productinformatie
