Specificaties
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870E -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Ethernet (RJ45)
1x Ethernet 5Gbps
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870E -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Ethernet (RJ45)
1x Ethernet 5Gbps
Verkrijgbaar sinds: 14 maart 2026
Alles openen
Socket en CPU
-
Socket
AM5
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X870E
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
256GB - Compatible modules Clocked (CUDIMM/CSODIMM)
-
Overklokprofielen
AMD EXPO -
Opmerkingen geheugen
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
Opslag
-
Hardeschijf bus (intern)
2x M.2 (PCI-e 4.0 x4), 2x M.2 (PCI-e 5.0 x4), 4x SATA-600 - Aantal M.2 heatsinks 4x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
*The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
**USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Netwerk
-
Ethernet (RJ45)
1x Ethernet 5Gbps - Netwerkcontroller Realtek RTL8126
- Netwerkcontroller(s) RTL8126
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Bluetooth
Bluetooth 5.4

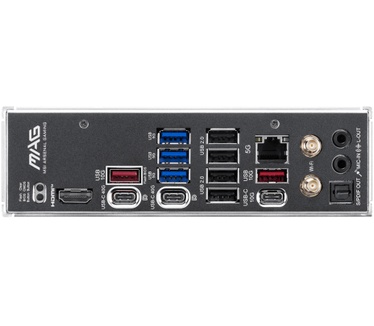

Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
-
USB/TB extern
4x USB 2.0 type-A, 3x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C, 2x USB 4 (Gen 3x2, 40Gbps) -
Video uit
1x HDMI, 2x USB type-C - Totaal video-uitgangen 3
- Hoogste HDMI versie HDMI 2.1
- Hoogste DisplayPort versie DisplayPort 1.4
(Fan) headers
- Headers (fan/water) 8x 4-pins (totaal)
-
(default) Fanconfiguratie
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
RGB
- RGB-headers 3x 3-pins (ARGB), 1x 4-pins (RGB)
-
LED verlichting
Overige eigenschappen
- Onboard knoppen Clear CMOS
- Eigenschappen moederbord BIOS update zonder cpu (via USB)
- Foutdiagnose/display Diagnose-leds, HEX-display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC4080
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
80A -
Aantal VCore-powerstages
14x -
Rating VCore-vrm
1.120A -
Vrm-koeling
Heatsink (passief)
Garantie en bijzonderheden
- Kleuren Zwart
Meer informatie
- Product MSI MAG X870E TOMAHAWK MAX WIFI
- Categorie Moederborden
- Merk MSI
- Serie MAG
- Tweakers ID 2326765
- EAN 4711377409063
- SKU 7E59-018R, MAG X870E TOMAHAWK MAX WIFI
- Specs van de fabrikant Productinformatie
