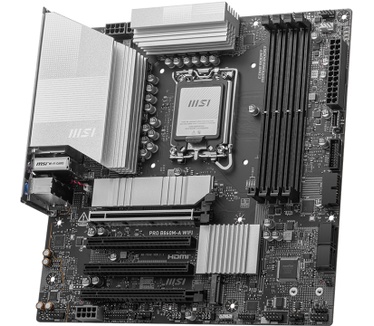

MSI PRO B860M-A WIFI

Populaire specificaties
Socket	1851
Moederbordchipset	Intel B860
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	1x Ethernet 5Gbps

Socket en CPU
Socket	1851

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	Intel B860

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	256GB
Compatible modules	CUDIMM
Overklokprofielen	Intel XMP
Opmerkingen geheugen	• 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x2), 1x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	1x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	3x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	4x
Opmerkingen uitbreidingsslots	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Netwerk
Ethernet (RJ45)	1x Ethernet 5Gbps
Netwerkcontroller	Realtek RTL8126
Netwerkcontroller(s)	RTL8126

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.4

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2, 10Gbit/s) header
USB/TB extern	1x Thunderbolt 4 type-C, 2x USB 2.0 type-A, 2x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen1, 5Gb/s) type-C, 1x USB 3.2 (Gen2, 10Gb/s) type-A
Video uit	1x DisplayPort, 1x HDMI, 1x Thunderbolt 4
Totaal video-uitgangen	3
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x Serieel (header), 1x TPM header

(Fan) headers
Headers (fan/water)	5x 4-pins (totaal)
(default) Fanconfiguratie	1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan

RGB
RGB-headers	2x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting

Overige eigenschappen
Onboard knoppen	Clear CMOS
Eigenschappen moederbord	Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC897

Vrm
Type stroomvoorziening	Powerstages
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	MSI PRO B860M-A WIFI
Categorie	Moederborden
Merk	MSI
Serie	PRO
Tweakers ID	2160742
EAN	4711377286565
SKU	7E42-002R, PRO B860M-A WIFI
Specs van de fabrikant	Productinformatie
