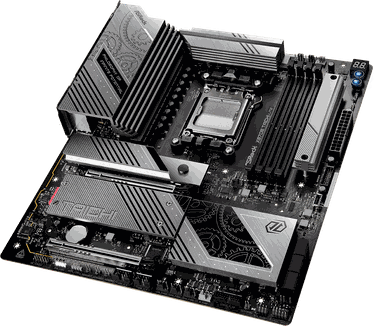

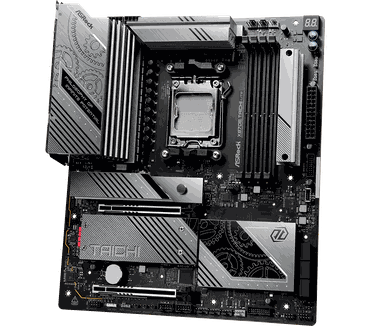

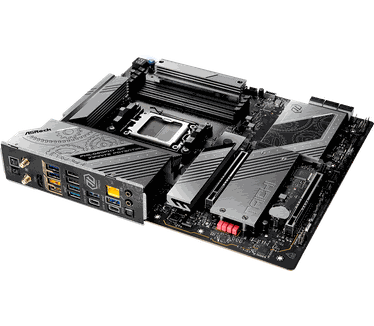

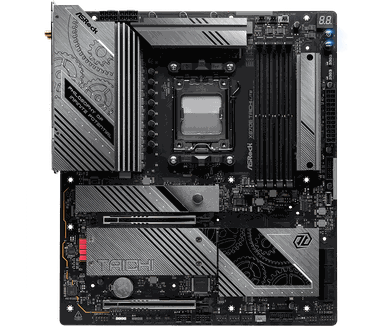

ASRock X870E Taichi Lite

Populaire specificaties
Socket	AM5
Moederbordchipset	AMD X870E
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	1x Ethernet 5Gbps

Socket en CPU
Socket	AM5

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	AMD X870E

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	256GB
Overklokprofielen	AMD EXPO, Intel XMP
Opmerkingen geheugen	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)

Opslag
Hardeschijf bus (intern)	3x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 6x SATA-600
Aantal gekoelde M.2 slots	4x
Raid-modi	0, 1, 10
Opmerkingen opslag	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 6 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x M.2, 2x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * PCIE1 and PCIE2 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.

Netwerk
Ethernet (RJ45)	1x Ethernet 5Gbps
Netwerkcontroller	Realtek RTL8126
Netwerkcontroller(s)	RTL8126

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.4

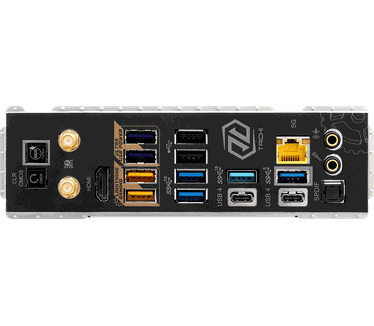

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
USB/TB extern	2x USB 2.0 type-A, 3x USB 3.2 (Gen1, 5Gb/s) type-A, 5x USB 3.2 (Gen2, 10Gb/s) type-A, 2x USB 4 (Gen 3x2, 40Gbps)
Video uit	1x HDMI, 2x USB type-C
Totaal video-uitgangen	3
Hoogste HDMI versie	HDMI 2.1
Opmerkingen aansluitingen	USB32_12 are Lightning Gaming Ports USB32_34 supports Ultra USB Power USB4 Type-C Ports supports USB PD 3.0 up to 5V@3A (15W)

(Fan) headers
Headers (fan/water)	8x 4-pins (totaal)
(default) Fanconfiguratie	2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting

Overige eigenschappen
Onboard knoppen	Clear CMOS, Power, Reset
Eigenschappen moederbord	AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	6 (5.1)
Audio-aansluitingen	1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC4082

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	110A
Aantal VCore-powerstages	24x
Rating VCore-vrm	2.640A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASRock X870E Taichi Lite
Categorie	Moederborden
Merk	ASRock
Tweakers ID	2113494
EAN	4710483947445, 4719083947445
SKU	90-MXBPA0-A0UAYZ, X870E Taichi Lite
Specs van de fabrikant	Productinformatie

Testrapport uit het Tweakers Testlab

Lees meer over hoe Tweakers producten test.

Testcondities
Processor	AMD Ryzen 9 9950X Boxed
HDD / SSD	WD Black SN770 1TB
vBIOS	3.08.AS01
Koeler	Alphacool Core Ocean T38 AIO 360mm
Behuizing	Fractal Design Define 7 XL

Moederbord VRM test - AM5 - 2024
Cinebench 2024 MT - Gem. na 15 min.	2.200 punten
Cinebench 2024 MT - Std. afwijking	32 punten
Cinebench 2024 MT - Gem. kloksnelheid na 15min.	5.046 MHz
AIDA64 - CPU Temp. na 15 min.	78,0 °C
AIDA64 - CPU package power max.	200,6 watt
Max. VRM temp. na 15 min. - FLIR	45,1 °C
Max. VRM temp. na 15 min.	45,1 °C

Moederborden - Stroomgebruik 2024
Energiegebruik - Idle - ATX - 12V	6,69 watt
Energiegebruik - Idle - ATX - 5V	23,33 watt
Energiegebruik - Idle - ATX - 3V	2,23 watt
Energiegebruik - Idle - EPS	11,72 watt
Energiegebruik - Idle - CPU (EPS+ATX12V)	18,41 watt
Energiegebruik - Idle - ATX + EPS	43,97 watt
Energiegebruik - Cinebench 24 - ATX - 12V	15,70 watt
Energiegebruik - Cinebench 24 - ATX - 5V	45,15 watt
Energiegebruik - Cinebench 24 - ATX - 3V	2,36 watt
Energiegebruik - Cinebench 24 - EPS	182,78 watt
Energiegebruik - Cinebench 24 - CPU (EPS+ATX12V)	198,48 watt
Energiegebruik - Cinebench 24 - ATX + EPS	245,99 watt
