Belangrijkste specificaties
- Materialen Koper, Nikkel
-
Kleur
Zilver -
LED verlichting
Nee -
Bijzonderheden

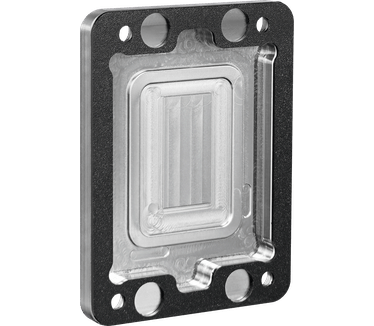

Product information "Intel Heatspreader - Intel"
The Intel High Performance Heatspreader is an upgrade heatspreader for Intel 12th, 13th and 14th Gen processors. The nickel-plated copper heatspreader features a 240 percent larger diamond-milled precision surface. This increased surface area over the original heatspreader allows for maximum heat dissipation with air and water coolers, while precision milling ensures extremely low surface roughness for best contact with the heat sink.
Replaces SAM and heatspreader
240% larger surface area (22 cm²)
Made of nickel-plated copper
Precision diamond milled surface
Compatible with air and water coolers
Only for delidded CPUs!
The nickel-plated surface of the Intel High Performance Heatspreader is compatible with traditional thermal pastes and gallium-based liquid metals. The nickel forms a barrier layer between the liquid metal and the copper cooler, so liquid metal does not diffuse into the copper and alloying is minimized. As a result, multiple applications of liquid metal are generally not necessary. For the most maintenance-free system possible, a KryoSheet graphene thermal pad can be used as the thermal interface between the CPU and the Intel High Performance Heatspreader. Since KryoSheet pads are electrically conductive, a cover is included to protect the electronic components on the CPU package.
Scope of delivery
1x Intel High Performance Heatspreader V1
4x pan-head screws UNC thread 3/8"
1x hexagon socket wrench 5/64"
1x angle wrench Torx T20
