Specificaties
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870E -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 - Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
-
Ethernet (RJ45)
2x Ethernet 10G/1G
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870E -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 - Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
-
Ethernet (RJ45)
2x Ethernet 10G/1G
Verkrijgbaar sinds: 19 augustus 2026
Alles openen
Socket en CPU
-
Socket
AM5
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X870E
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
256GB - Compatible modules ECC
-
Overklokprofielen
AMD EXPO -
Opmerkingen geheugen
8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors
9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors
** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 4.0 x2), 4x M.2 (PCI-e 4.0 x4), 4x M.2 (PCI-e 5.0 x4), 2x SATA-600 - Aantal M.2 heatsinks 9x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
2 x SATA 6Gb/s ports
ASMedia ASM58012 Controllers
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
ASMedia ASM1162 Controller
2 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** The USB4® 40Gbps ports and the M.2 Socket 3 slot (M.2_2) share the available bandwidth. When a device is installed in the M.2_2 slot, both the USB4® controller and the M.2_2 slot operate at up to x2 mode. By configuring the M.2_2 slot in the BIOS, the M.2_2 slot can operate at up to x4 mode. However, enabling this setting will disable the USB4® 40Gbps ports.
AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10*
*SATA ports from ASM1162 cannot support RAID - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 5.0 x16 -
Totaal PCI-e x16
2x -
Opmerkingen uitbreidingsslots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 or x4/x4/x4/x4 modes)**
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
* Specifications vary by CPU types.
** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.
Netwerk
-
Ethernet (RJ45)
2x Ethernet 10G/1G - Netwerkcontroller Realtek (variant)
- Tweede netwerkcontroller Realtek (variant)
- Netwerkcontroller(s) Realtek (variant)
Wifi en bluetooth
- Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
-
Bluetooth
Bluetooth 5.4 - Wifi-controller MediaTek Wi-Fi 7 MT7927, RZ738
Aansluitingen
- USB/TB intern (front) 3x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 2x USB-C 3.2 (G2x2, 20Gbit/s) header
-
USB/TB extern
8x USB 3.2 (Gen1, 5Gb/s) type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-C, 2x USB 4 (Gen 3x2, 40Gbps) -
Video uit
2x USB type-C - Totaal video-uitgangen 2
- Hoogste DisplayPort versie DisplayPort 1.4
(Fan) headers
- Headers (fan/water) 10x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x AIO Q-Connector
1 x Extra Flow Fan header
RGB
- RGB-headers 4x 3-pins (ARGB)
- Opmerkingen RGB headers 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Clear CMOS, Power, Reset
- Eigenschappen moederbord BIOS update zonder cpu (via USB), Dual BIOS, Geïntegreerd I/O-shield
- Foutdiagnose/display Diagnose-leds
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC4082
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
110A -
Aantal VCore-powerstages
24x -
Rating VCore-vrm
2.640A -
Vrm-koeling
Waterkoeling
Garantie en bijzonderheden
- Kleuren Zwart
- Bijzonderheden Inclusief ROG RYUJIN 360 Edition 20 All-in-one Liquid Cooling Kit
Meer informatie

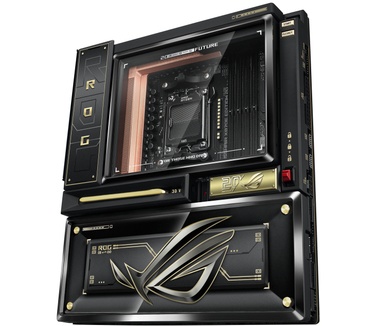

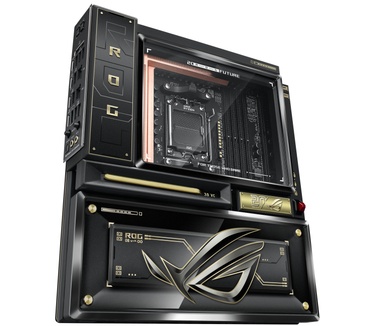

- Product ASUS ROG Crosshair X870E Edition 20
- Categorie Moederborden
- Merk ASUS
- Serie ROG
- Tweakers ID 2376284
- EAN 0199291650985, 4711636650984
- SKU 90MB1PD0-M0EAY0
- Specs van de fabrikant Productinformatie
