Specificaties
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD B850 -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps -
Uitbreidingsslots
2x PCI-e 3.0 x16, 2x PCI-e 4.0 x16
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD B850 -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps -
Uitbreidingsslots
2x PCI-e 3.0 x16, 2x PCI-e 4.0 x16
Verkrijgbaar sinds: 13 januari 2026
Alles openen
Socket en CPU
-
Socket
AM5
Form factor, bios en chipset
-
Moederbordchipset
AMD B850
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
256GB -
Opmerkingen geheugen
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600 -
Raid-modi
0, 1, 10 -
Opmerkingen opslag
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x16, 2x PCI-e 4.0 x16 -
Totaal PCI-e x16
4x -
Opmerkingen uitbreidingsslots
4x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Bluetooth
Bluetooth 5.3
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2, 10Gbit/s) header
-

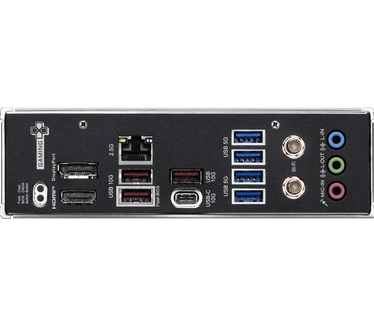

USB/TB extern
4x USB 2.0 type-A, 3x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C -
Video uit
1x DisplayPort, 1x HDMI - Totaal video-uitgangen 2
- Hoogste HDMI versie HDMI 2.1
- Hoogste DisplayPort versie DisplayPort 1.4
RGB
-
LED verlichting
Meer informatie

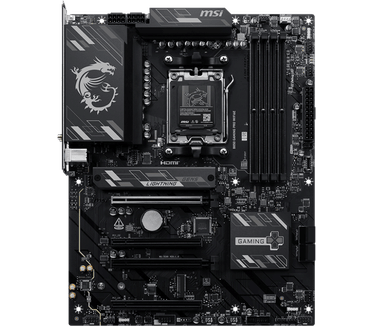

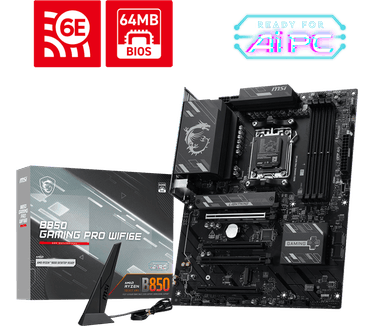

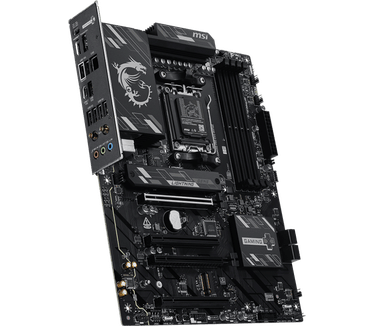

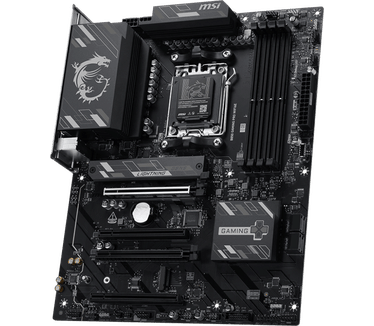

- Product MSI B850 GAMING PRO WIFI6E
- Categorie Moederborden
- Merk MSI
- Tweakers ID 2308678
- EAN 4711377393522
- SKU 7E89-001R, 911-7E89-001
- Specs van de fabrikant Productinformatie
