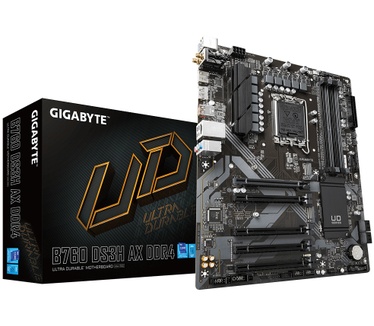

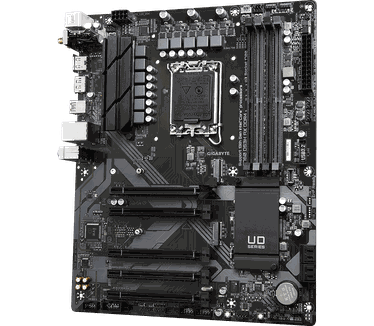

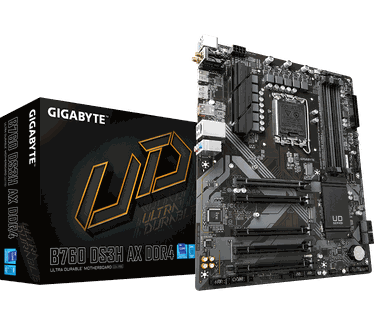

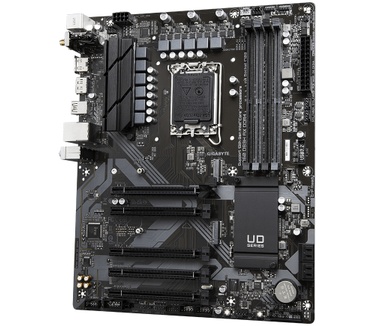

Gigabyte B760 DS3H AX DDR4

Populaire specificaties
Socket	1700
Moederbordchipset	Intel B760
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	1x Ethernet 1Gbps

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel B760

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Compatible modules	ECC (in non-ECC mode)
Overklokprofielen	Intel XMP
Opmerkingen geheugen	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 4.0 x4), 4x SATA-600
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	4x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Totaal PCI-e x16	5x
Opmerkingen uitbreidingsslots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Realtek (variant)
Netwerkcontroller(s)	Realtek (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.2
Wifi-controller	MediaTek MT7921K

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G1, 5Gbit/s) header
USB/TB extern	4x USB 2.0 type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.0
Hoogste DisplayPort versie	DisplayPort 1.2
Overige aansluitingen	1x PS/2, 1x Serieel (header), 1x TPM header
Opmerkingen aansluitingen	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)
(default) Fanconfiguratie	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header

RGB
RGB-headers	2x 3-pins (ARGB), 2x 4-pins (RGB)
LED verlichting

Overige eigenschappen
Onboard knoppen	Reset
Eigenschappen moederbord	BIOS update zonder cpu (via USB)
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)

Vrm
Vrm-koeling

Meer informatie
Product	Gigabyte B760 DS3H AX DDR4
Categorie	Moederborden
Merk	Gigabyte
Tweakers ID	1901104
EAN	4719331850999
SKU	B760 DS3H AX DDR4
