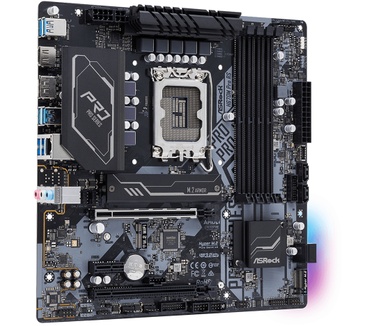

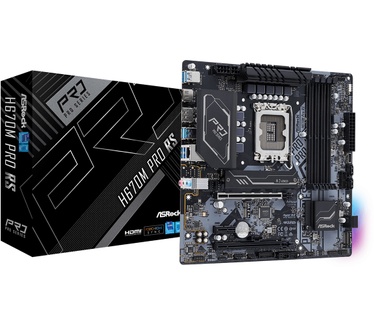

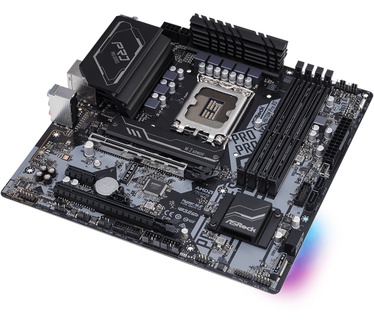

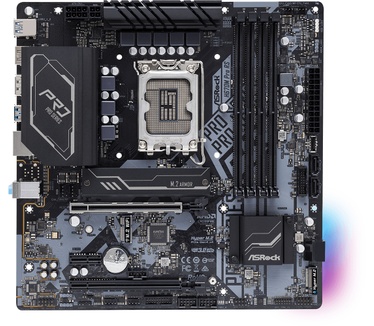

ASRock H670M Pro RS

Populaire specificaties
Socket	1700
Moederbordchipset	Intel H670
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	4x DDR4
Ethernet (RJ45)	1x Ethernet 1Gbps
Uitbreidingsslots	1x M.2, 1x PCI-e 3.0 x1, 2x PCI-e 4.0 x16

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	Intel H670

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Opmerkingen geheugen	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 *Supports DDR4 3200 natively.

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	1x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	- 4 x SATA3 6.0 Gb/s Connectors* - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode** - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes** *If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. **Supports Intel® Optane™ Technology (M2_2 only) Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 5
M.2 op CPU	Onbekend

Uitbreidingsslots
Uitbreidingsslots	1x M.2, 1x PCI-e 3.0 x1, 2x PCI-e 4.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* - 1 x PCIe Gen3x1 Slot - Supports AMD CrossFire™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports NVMe SSD as boot disks

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Intel I219V
Netwerkcontroller(s)	Intel I219V

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt 4 header, 1x USB-C 3.2 (G1, 5Gbit/s) header
USB/TB extern	4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x TPM header

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)
(default) Fanconfiguratie	- 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC897

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	50A
Vrm-koeling	Heatsink (passief)
Vrm-opmerkingen	- 1 x SPI TPM Header - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

Meer informatie
Product	ASRock H670M Pro RS
Categorie	Moederborden
Merk	ASRock
Tweakers ID	1783374
EAN	4710483936555
SKU	90-MXBHK0-A0UAYZ
Specs van de fabrikant	Productinformatie
