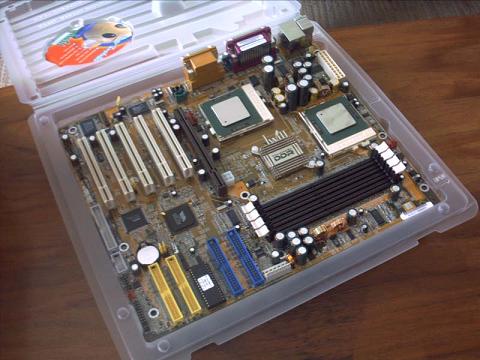

De Iwill DVD266u-RN is een binnenkort op de markt te verschijnen dual processor moederbord, geschikt voor alle Socket370 processors, inclusief Intel's Tualatins. Daarmee volgt dit PC1600/2100 DDR plankje, dat gebouwd is rond VIA's Apollo Pro 266T chipset, de Iwill DVD266 op. Accelenation onderwierp een pre-release van de DVD266u-RN aan een test, prikte er twee 1,26GHz Pentium III-S (Tualatin) processors in en vergeleek deze configuratie met enkele andere dual-systemen.
Ten opzichte van de DVD266 is de lay-out van de DVD266u-RN verbeterd, volgens de reviewer. Alleen de plaats van de Floppy header onderaan het mobo is en minpuntje, want dat vraagt om een langere Floppy-cable. Het bord heeft geen CNR/AMR/ACR slotjes, maar wel ondermeer 5 PCI-sloten, 1 AGP Pro slot, ATA100 support en 6 USB poorten. De 4 geheugenbanken ondersteunen tot 2GB unbuffered RAM, of tot 4GB aan Registered ECC PC1600/2100 DDR RAM. Ook aanwezig is een 5.1 kanaals C-Media chip, die EAX en A3D ondersteunt. Iwill levert er een SuperAudio Extension kaartje bij voor diverse audio I/O aansluitingen. Een onboard 10/100 LAN ontbreekt op het plankje niet, een Highpoint 370 RAID chip is optioneel. BIOS en overclocking features zijn uitgebreid en bieden instelbare memory-timings zoals CAS Latency, Interleaving en Command Rate (2T-0T). De FSB laat zich instellen in stapjes van 1MHz van 66-200MHz en individuele Vcore tweaking voor beide CPU's tot 1,825V. Helaas ontbrak een VIO of VMEM optie in het BIOS, om de tweakability te complementeren.
Installatie, overklokbaarheid en stabiliteit waren probleemloos en goed, op één punt na: er was een probleem met het netwerkgedeelte. Omdat het om een pre-release versie gaat, verwacht de reviewer dat dit foutje er wel uit zal zijn gehaald, als over een paar weken de eerste plankjes verscheept worden. Over de performance van dit plankje met de twee 1,26GH Tualatin-S chips, was de reviewer zeer tevreden:
Overclocking
Overclocking on the DVD266u-RN was a pleasure. That is mostly due to the fact that I was lucky enough to get a killer pair of Tualatin's, but it was helped by the easy BIOS options on the board. Since we can't change the multiplier of Intel chips I was left with front side bus manipulation only.
I was able to get the bus to 145Mhz before I had to raise the core voltage of the processors (that's 1.37Ghz). After raising the core voltage from 1.45V to 1.55V I was able to hit 158Mhz, which is 1.5Ghz. That is where it ended for the processors, but I am not complaining.I also want to use this section to talk a little about cooling. As I am sure you know, Tualatin’s run very cool. As a matter of fact, at default speed with the stock heatsink and fan (which is extremely quiet), the chips ran at under 90F under load.
So, I got the idea (like in my desktop Tualatin article) to try running them with no fan. I took two copper coolers (SK-6's) and took the fans off and let them run with only a small 5000-RPM 21db blower in the case. The result? 107F under load. The system is so quiet I have hard time telling when it is on.
Conclusion
The Tualatin-S is an interesting processor. To me, it definitely shows that Intel has a working 0.13-micron process that offers evident benefits. I think the extra cache really helps push the part, and actually helps it contend with the Athlon MP very well. Performance-wise, I think it is pretty much a draw when comparing the two at default speed.
[...] Now on to the DVD266u-RN. I received a pre-production board, so the performance may change a point or two (likely in an upwards direction), and of course, I will have to come back and make sure the onboard LAN works. Besides those variables this board is verging on perfect. The layout is good, the performance is great, the features are abundant, and the BIOS compliments it all. On top of that, the price will likely be very reasonable (I would guess under $200 for the RAID version).
[..] I am not going to give this board a score yet since it is a pre-release product. I will say that if Iwill does fix the LAN issue the board will get between 92-95%. That's 3% off for the floppy placement, and a couple percent off for lack of VMEM. Depending on how other 2P Tualatin boards look, this board MAY get an award in the future too. It is that good.
![]() |
JAMF, was het snelst met het insturen van dit nieuws, waarvoor dank.
