Er zijn nog geen prijzen van de MSI MPG X870E CARBON MAX WIFI bekend. Stel een prijsalert in om notificaties te krijgen zodra er een prijs bekend is.
Specificaties
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870E -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 5Gbps
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870E -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 5Gbps
Alles openen
Socket en CPU
-
Socket
AM5
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X870E
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
256GB - Compatible modules Clocked (CUDIMM/CSODIMM)
-
Overklokprofielen
AMD EXPO -
Opmerkingen geheugen
Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
Opslag
-
Hardeschijf bus (intern)
2x M.2 (PCI-e 4.0 x4), 2x M.2 (PCI-e 5.0 x4), 4x SATA-600 - Aantal M.2 heatsinks 4x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2*/** Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• Supports up to PCIe 4.0 x4
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• Supports up to PCIe 4.0 x4
M.2_1 slot
M.2_2 slot
M.2_3 slot
M.2_4 slot
*The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series.
** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
** RAID 10 configuration is only supported by Ryzen™ 9000/7000 series processors. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 4.0 x16, 2x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4
PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 5Gbps - Netwerkcontroller Realtek RTL8126
- Tweede netwerkcontroller Realtek RTL8125
- Netwerkcontroller(s) Realtek RTL8125, RTL8126
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Bluetooth
Bluetooth 5.4

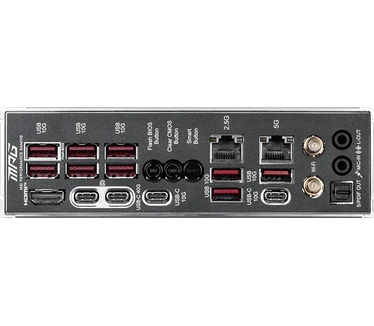

Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
-
USB/TB extern
9x USB 3.2 (Gen2, 10Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-C, 2x USB 4 (Gen 3x2, 40Gbps) -
Video uit
1x HDMI, 2x USB type-C - Totaal video-uitgangen 3
- Hoogste HDMI versie HDMI 2.1
- Hoogste DisplayPort versie DisplayPort 1.4
(Fan) headers
- Headers (fan/water) 7x 4-pins (totaal)
-
(default) Fanconfiguratie
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
RGB
- RGB-headers 3x 3-pins (ARGB), 1x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Clear CMOS
- Eigenschappen moederbord BIOS update zonder cpu (via USB)
- Foutdiagnose/display Diagnose-leds, HEX-display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC4080
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
110A -
Aantal VCore-powerstages
18x -
Rating VCore-vrm
1.980A -
Vrm-koeling
Heatsink (passief)
Garantie en bijzonderheden
- Kleuren Zwart
Meer informatie
- Product MSI MPG X870E CARBON MAX WIFI
- Categorie Moederborden
- Merk MSI
- Serie MPG
- Tweakers ID 2326769
- SKU MPG X870E CARBON MAX WIFI
- Specs van de fabrikant Productinformatie
