Opmerkingen geheugenS3 (Sleep) mode is supported only when 1 / 2 / 4 DIMMs memory modules are installed.
1DPC Up to 6800+ MHz (OC) with X-Series CPU, 4800 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5.
2DPC Up to 6200+ MHz (OC) with X-Series CPU, 4400 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5.
Supports 4400 MHz Natively for Xeon® W3, W5-3423 and W5-3433. Overclocking is not supported.
Opmerkingen opslagCPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
- 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 8 x SATA3 6.0 Gb/s Connectors
- 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode
USB/TB intern (front)2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header

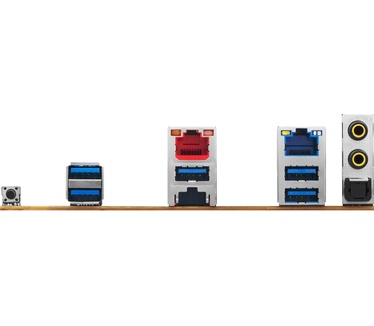

USB/TB extern3x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A
Overige aansluitingen1x TPM header
Opmerkingen aansluitingen- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)
- 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)****
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)*****
**** It is optional to connect an ATX 12V 6-pin Cable to ATX12V3, which provides more power for overclocking.
***** Use either GTX_12V1 or GTX_12V2 when you install one or two PCIe card(s). Use both connectors when you install more than two PCIe cards. Otherwise, the system may not boot up properly.
(Fan) headers
Headers (fan/water)5x 4-pins (totaal)
(default) Fanconfiguratie- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
* CPU_FAN1 supports the fan power up to 1A (12W).
** CPU_FAN2/WP_3A supports the fan power up to 3A (36W).
*** CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP_3A and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
RGB
LED verlichting
Overige eigenschappen
Onboard knoppenClear CMOS, Power, Reset
Eigenschappen moederbordBIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
