Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 295,97 op 8 juli 2025.
Specificaties
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD B550 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD B550 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 11 juni 2020
Alles openen
Socket en CPU
-
Socket
AM4
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD B550
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4 + SATA), 6x SATA-600 - Aantal M.2 heatsinks 2x
-
Raid-modi
0, 1, 10 -
Opmerkingen opslag
1 x M.2_2 socket 3,
AMD RyzenTM 4000 G-Series Processor :
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10 - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 2x PCI-e 4.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
3rd Gen AMD Ryzen™ Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Intel I225-V
- Netwerkcontroller(s) I225-V
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Bluetooth
Bluetooth 5.1
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2, 10Gbit/s) header
-
USB/TB extern
4x USB 2.0 type-A, 1x USB 2.0 type-C, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C -
Video uit
1x DisplayPort, 1x HDMI - Totaal video-uitgangen 2
- Opmerkingen aansluitingen USB 2.0 type-c is alleen voor audio
(Fan) headers
- Headers (fan/water) 5x 4-pins (totaal)
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield, Nvidia NVLink (SLI)
- Foutdiagnose/display Diagnose-leds, HEX-display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Microfoon (ingang)
- Audiochip SupremeFX
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
50A -
Aantal VCore-powerstages
12x -
Rating VCore-vrm
600A -
Vrm-koeling
Heatsink (passief) - Vrm-opmerkingen Controller: ASP1106GGQW
Garantie en bijzonderheden
- Fabrieksgarantie 3 jaar carry in
Meer informatie

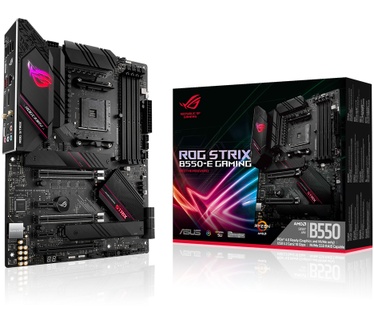

- Product ASUS ROG Strix B550-E GAMING
- Categorie Moederborden
- Merk ASUS
- Serie ROG Strix
- Tweakers ID 1564264
- EAN 4718017750264
- SKU 90MB1470-M0EAY0, ROG-STRIX-B550-E-GAMING
- Specs van de fabrikant Productinformatie
Redactie
Reviews door gebruikers
Scoreverdeling
Gemiddelde gebruikersscore
4,3
4.5 van 5 sterren
5
8
1
0
0
Beste beoordeelde review
Mooi moederbord met uitgebreide featureset. Vooral voor nieuwe ryzen-processors fijn dat het BIOS te updaten valt met USB zonder dat een ondersteunende processor benodigd is.
Pluspunten
Bios updaten via usb Wifi-mogelijkheid
Minpunten
prijs best fors Bios was enige tijd niet te downloaden
