Specificaties
Belangrijkste specificaties
-
Ethernet (RJ45)
8x Ethernet 1Gbps - SFP/XFP-poorten 2x Combo SFP, 2x SFP (1G)
-
Power-over-Ethernet-poorten
8x PoE (802.3af), 8x PoE+ (802.3at) -
Totaal PoE-budget
200W -
Switchtype
Managed - Beheerprotocollen LLDP, RMON1, RMON2, SNMP v1, SNMP v2c, SNMP v3
Belangrijkste specificaties
-
Ethernet (RJ45)
8x Ethernet 1Gbps - SFP/XFP-poorten 2x Combo SFP, 2x SFP (1G)
-
Power-over-Ethernet-poorten
8x PoE (802.3af), 8x PoE+ (802.3at) -
Totaal PoE-budget
200W -
Switchtype
Managed - Beheerprotocollen LLDP, RMON1, RMON2, SNMP v1, SNMP v2c, SNMP v3
Verkrijgbaar sinds: 15 september 2018
Alles openen
Poorten
-
Ethernet (RJ45)
8x Ethernet 1Gbps - SFP/XFP-poorten 2x Combo SFP, 2x SFP (1G)
Power-over-Ethernet
-
Power-over-Ethernet-poorten
8x PoE (802.3af), 8x PoE+ (802.3at) -
Totaal PoE-budget
200W
Eigenschappen
-
Switchtype
Managed - Beheerprotocollen LLDP, RMON1, RMON2, SNMP v1, SNMP v2c, SNMP v3
- Switch layer Layer 2
- Switch eigenschappen Broadcast stormbeheer, IGMP snooping, Jumbo frames, Link aggregation, Multicast, Port mirroring, Quality of Service (QoS), Rate limiting, VLAN
Data-uitwisseling
- Jumbo Frame grootte 10.000Bytes
- Aantal VLANs 256x
- Entries MAC-adrestabel 8.000x
- Throughput 14,8Mpps
- Maximale bandbreedte 20Gbps
Stroom
-
Stroomverbruik
210W
Afmetingen en kleur
-
Hoogte
134mm -
Breedte
178mm -
Diepte
25mm -
Kleur
Zwart
Garantie en bijzonderheden
- Fabrieksgarantie 3 jaar carry in
-
Bijzonderheden
- 8-port Wall-mount managed switch
- 8-port 10/100/1000T 802.3at POE
- 2-port 100/1000X SFP
- Temp. range -40 ~ +75 degrees
- IP30 metal case protection
Easily-deployed and Expanded Network

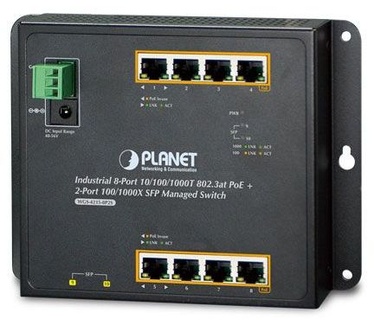

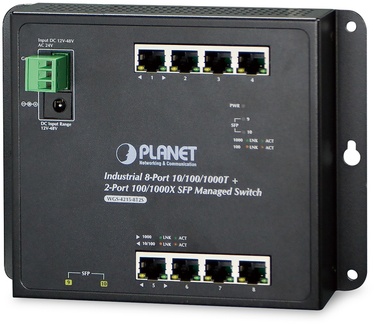

Designed to be installed in a wall enclosure or simply mounted on a wall in any convenient location, PLANET WGS-4215-8P2S, an innovative, Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Wall-mounted Managed Switch, offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-4215-8P2S is able to operate reliably, stably and quietly in any environment without affecting its performance. With a total power budget of up to 200 watts for different kinds of PoE applications and featuring ultra networking speed and operating temperature ranging from -40 to 75 degrees Cin a compact but rugged IP30 metal housing, the WGS-4215-8P2S is an ideal solution to meeting the demand for the following network applications:
■ Building/Home automation network
■ Internet of things (IoT)
■ IP surveillance
■ Wireless LAN
Built-in Unique PoE Functions for Powered Devices Management
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-4215-8P2S features the following special PoE management functions:
■ PD alive check
■ Scheduled power recycling
■ PoE schedule
■ PoE usage monitoring
Intelligent Powered Device Alive Check
The WGS-4215-8P2S can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the WGS-4215-8P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
Scheduled Power Recycling
The WGS-4215-8P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-4215-8P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.
Innovative Wall-mount Installation

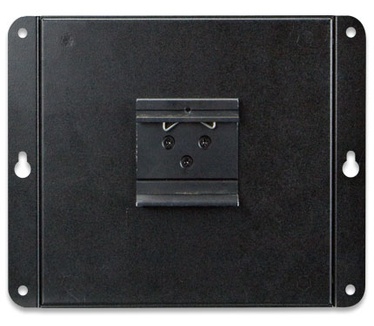

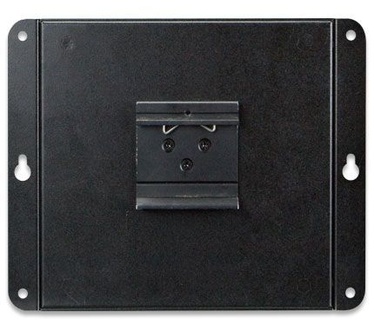

The WGS-4215-8P2S is specially designed to be installed in a narrow environment, such as wall enclosure or electric weak box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-4215-8P2S placed in an enclosure very convenient for technicians. The WGS-4215-8P2S can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.
Environmentally Hardened Design
With IP30, flat but rugged metal housing protection, the WGS-4215-8P2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the WGS-4215-8P2S can be placed in almost any difficult environment.
IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the WGS-4215-8P2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.
Robust Layer 2 Features
The WGS-4215-8P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the WGS-4215-8P2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
Meer informatie
- Product Planet WGS-4215-8P2S 8-poort, 2-SFP Wallmount Industriële High Power POE Switch
- Categorie Netwerk switches
- Merk Planet
- Tweakers ID 1243409
- EAN 4711605281843
- SKU WGS-4215-8P2S
- Specs van de fabrikant Productinformatie
