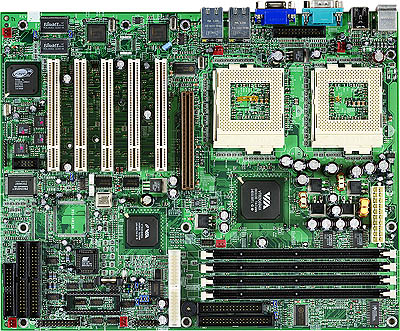

2CPU heeft een review gefabriceerd van het Tyan Tiger 200 dual-processor moederbord. Het bord baseert zich op de VIA Apollo Pro 133A chipset, en 'lust' twee Intel Pentium III processoren. Het bord kent een hoge graad van integratie, zoals uit onderstaande specs al wel blijkt:
- 4 DIMM-slots voor maximaal 2GB
- Promise FastTrak 100 IDE-RAID controller
- Twee Intel 10/100MBit on-board NIC's
- ATi Rage XL on-board video
- Eén AGP (2x/4x) slot en vijf 32-bits PCI-slots
Het plankje heeft standaard ATX-maten en is daarmee uitermate geschikt om te worden ingebouwd in een 19"/2U rackmount. Daarmee bouw je dus zonder verdere componenten toe te voegen snel en relatief voordelig een lichte server. Maar door de aanwezigheid van een AGP slot kan deze Tyan natuurlijk ook worden ingezet in een workstation-achtige computer: on-board video uitschakelen, flitsende videokaart toevoegen... et voila: een snel twee-processor systeem is geboren!
Gedurende de test en in de benchmarks laat de Tyan zien wat 'ie waard is: géén spectaculaire scores maar vooral stabiliteit - natuurlijk voor een server essentieel, voor een professioneel gebruikt workstation ook, maar misschien niet precies wat de die-hard tweaker zoekt. Eén belangrijk nadeel heeft de Tiger 200 namelijk wèl: er valt niets te tweaken, overclocking is simpelweg onmogelijk:
If you want a board that will overclock your 700E's to 933, look elsewhere. Even though there is a jumper that allows overclocking, this board supports two bus speeds and two bus speeds only... 100 and 133. There is no way to set it to anything else, and no voltage tweaking in the BIOS or otherwise.[break]De eindconclusie is, ondanks het feit dat 't dan voor de tweakende horde misschien geen ideaal plankje is zeker wel positief:[/break]You would be hard pressed to find a better entry level server board than the Tiger 200. Tyan has identified a gap between the low cost VIA boards and the high priced ServerWorks boards... A gap that is filled quite nicely by the Tiger 200. Although the price is higher than a "standard" board, the cost is offset by all of the features packed in. By the time you buy dual NICs, a video card and a RAID controller for your VP6, your awfully close to the Tiger 200's current street price of $300+/-. Throw in the added bonus of Tyan's direct end-user support and reputation for quality products and you have a surefire winner on your hands.
De volledige review kun je alhier nalezen. Met dank aan Alberto voor de tip.
