Specificaties
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD B550 -
Form Factor
Micro-ATX (µATX) -
Geheugentype (moederbord)
4x DDR4 -
Ethernet (RJ45)
1x Ethernet 1Gbps -
Uitbreidingsslots
1x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD B550 -
Form Factor
Micro-ATX (µATX) -
Geheugentype (moederbord)
4x DDR4 -
Ethernet (RJ45)
1x Ethernet 1Gbps -
Uitbreidingsslots
1x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Alles openen
Socket en CPU
-
Socket
AM4
Form factor, bios en chipset
-
Form Factor
Micro-ATX (µATX) -
Moederbordchipset
AMD B550
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB - Compatible modules ECC (in non-ECC mode)
-
Overklokprofielen
Intel XMP -
Opmerkingen geheugen
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x2 + SATA), 1x M.2 (PCI-e 4.0 x4 + SATA), 4x SATA-600 -
Raid-modi
0, 1, 10 -
Opmerkingen opslag
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10 - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16 -
Totaal PCI-e x16
2x -
Opmerkingen uitbreidingsslots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU's specification.
AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Netwerk
-
Ethernet (RJ45)
1x Ethernet 1Gbps - Netwerkcontroller Realtek (variant)
- Netwerkcontroller(s) Realtek (variant)
Aansluitingen
- USB/TB intern (front) 1x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header
-
USB/TB extern
4x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A -
Video uit
1x DisplayPort, 1x DVI-D, 1x HDMI - Totaal video-uitgangen 3
- Hoogste HDMI versie HDMI 2.1
- Hoogste DisplayPort versie DisplayPort 1.2
- Overige aansluitingen 1x PS/2, 1x TPM header
-
Opmerkingen aansluitingen
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
(Fan) headers
- Headers (fan/water) 3x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x CPU fan header
2 x system fan headers
RGB
- RGB-headers 2x 3-pins (ARGB), 3x 4-pins (RGB)
-
LED verlichting
Overige eigenschappen
- Eigenschappen moederbord BIOS update zonder cpu (via USB)
-
Foutdiagnose/display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 2x Analoog (uitgang), 1x Microfoon (ingang)
- Audiochip Realtek ALC887
Vrm
-
Type stroomvoorziening
Losse mosfets -
Vrm-koeling
Heatsink (passief), Nee - Vrm-opmerkingen Controller: RAA229004
Garantie en bijzonderheden
- Kleuren Zwart
- Fabrieksgarantie 3 jaar carry in
-
Bijzonderheden
Let op, er zijn verschillende revisies van dit moederbord bekend, elk met eigen bios-versies en mogelijk onderlinge verschillen. Omdat er geen aparte EAN-codes lijken te bestaan voor de verschillende versies, kan je van alles krijgen. Neem contact op met je favoriete webshop als je zeker wilt weten wat je krijgt.
128Mbit Flash
Meer informatie

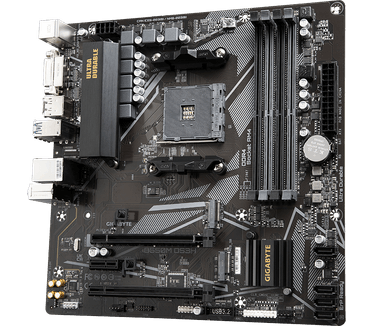

- Product Gigabyte B550M DS3H
- Categorie Moederborden
- Merk Gigabyte
- Tweakers ID 2010164
- SKU B550M DS3H (rev. 1.5)
- Specs van de fabrikant Productinformatie
Redactie
Reviews door gebruikers
Scoreverdeling
Gemiddelde gebruikersscore
4,2
4 van 5 sterren
8
7
2
1
0
Beste beoordeelde review
Prima B550 moederbordje gelijk mijn Ryzen5-5600x ondersteund. Gekocht toen ik mijn oude videokaart nog had. Na upgrade naar GeForce 3060Ti ben ik 3 van de 4 sata poorten kwijt . De lange vga-kaart dekt drie Sata poorten af......BUMMER. Nu moet ik op zoek naar bord welke dat niet heeft.......
Pluspunten
Werkt zoals het hoort Prima bios Één van de 4 sata poorten. Niet bereikbaar met lange videokaart.
Minpunten
Plaatsing SATA poorten ongelukkig
