Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 600,- op 20 mei 2026.
Specificaties
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z790 -
Form Factor
EATX (Extended ATX) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 10G/5G/2.5G/1G/100M
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z790 -
Form Factor
EATX (Extended ATX) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 10G/5G/2.5G/1G/100M
Verkrijgbaar sinds: 11 oktober 2022
Alles openen
Socket en CPU
-
Socket
1700
Form factor, bios en chipset
-
Form Factor
EATX (Extended ATX) -
Moederbordchipset
Intel Z790
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
128GB - Compatible modules ECC (in non-ECC mode)
-
Opmerkingen geheugen
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600 - Aantal M.2 heatsinks 5x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x16, 1x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Netwerk
-
Ethernet (RJ45)
1x Ethernet 10G/5G/2.5G/1G/100M - Netwerkcontroller Marvell AQtion AQC113C
- Netwerkcontroller(s) AQC113C
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Bluetooth
Bluetooth 5.3 - Wifi-controller Intel Wi-Fi 6E AX411
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
-
USB/TB extern
4x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen1, 5Gb/s) type-C, 7x USB 3.2 (Gen2, 10Gb/s) type-A, 2x USB 3.2 (Gen2x2, 20Gb/s) type-C -
Video uit
1x DisplayPort - Totaal video-uitgangen 1
- Hoogste DisplayPort versie DisplayPort 1.2
(Fan) headers
- Headers (fan/water) 10x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Clear CMOS, Power, Reset
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
- Foutdiagnose/display Diagnose-leds, HEX-display
Audio
- Audio kanalen 6 (5.1)
- Audio-aansluitingen 1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC1220-VB
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
105A -
Aantal VCore-powerstages
20x -
Rating VCore-vrm
2.100A -
Vrm-koeling
Heatsink (passief)
Meer informatie

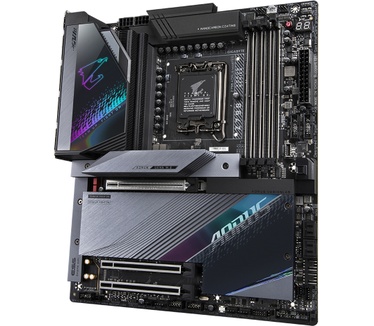

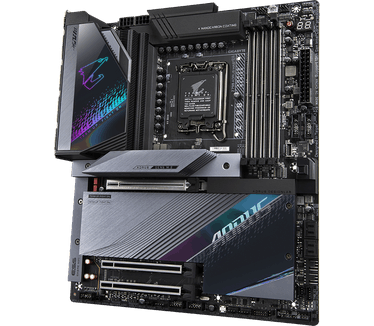

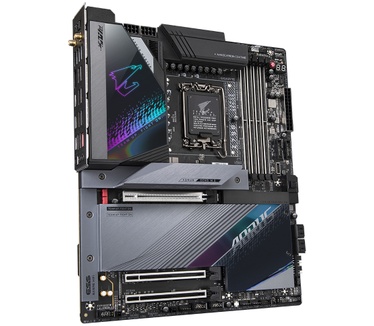

- Product Gigabyte AORUS Z790 MASTER
- Categorie Moederborden
- Merk Gigabyte
- Serie AORUS
- Tweakers ID 1867348
- EAN 4719331848934
- SKU Z790 AORUS MASTER, Z790 AORUS MASTER 1.0
- Specs van de fabrikant Productinformatie
Redactie
Reviews door gebruikers
Scoreverdeling
Gemiddelde gebruikersscore
4,8
5 van 5 sterren
3
1
0
0
0
Beste beoordeelde review
Very good motherboard, looks nice and has nice LED lighting that can be adjusted with the software.
Good heatsink for the SSD and plenty of inputs for components. Definitely a recommended motherboard
Pluspunten
high quality Nice design Works fast
Minpunten
Only 2 usb_2
