Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 229,- op 29 september 2025.
Specificaties
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 30 oktober 2021
Alles openen
Socket en CPU
-
Socket
1700
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
Intel Z690
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
128GB -
Opmerkingen geheugen
Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Opslag
-
Hardeschijf bus (intern)
3x M.2 (PCI-e 4.0 x4), 6x SATA-600 - Aantal M.2 heatsinks 1x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 3.0 x1, 2x PCI-e 3.0 x16, 1x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Realtek (variant)
- Netwerkcontroller(s) Realtek (variant)
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Bluetooth
Bluetooth 5.2 - Wifi-controller Intel Wi-Fi 6 AX201
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 2x Thunderbolt header, 1x USB-C 3.2 (G1, 5Gbit/s) header
-
USB/TB extern
4x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C -
Video uit
1x DisplayPort, 1x HDMI - Totaal video-uitgangen 2
- Hoogste HDMI versie HDMI 2.0
- Hoogste DisplayPort versie DisplayPort 1.2
- Overige aansluitingen 1x PS/2, 1x TPM header
- Opmerkingen aansluitingen 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
(Fan) headers
- Headers (fan/water) 6x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
Overige eigenschappen
- Onboard knoppen Reset
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
- Foutdiagnose/display Diagnose-leds
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 2x Analoog (uitgang), 1x Microfoon (ingang)
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
60A -
Aantal VCore-powerstages
16x -
Rating VCore-vrm
960A -
Vrm-koeling
Heatsink (passief) - Vrm-opmerkingen Controller: RAA229131
Garantie en bijzonderheden
- Fabrieksgarantie 3 jaar carry in
Meer informatie

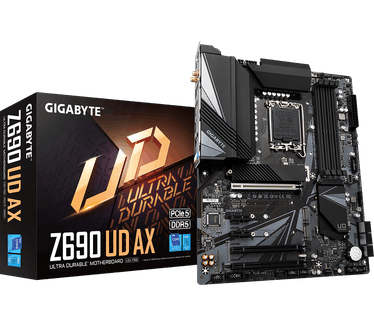

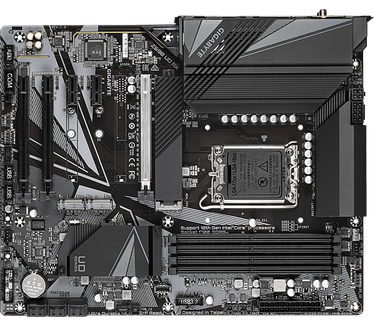

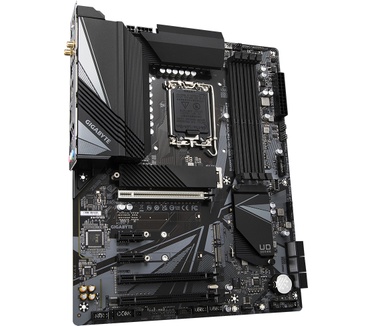

- Product Gigabyte Z690 UD AX (rev. 1.0)
- Categorie Moederborden
- Merk Gigabyte
- Tweakers ID 1760404
- EAN 4719331827861
- SKU Z690 UD AX, Z690 UD AX (rev. 1.0)
- Specs van de fabrikant Productinformatie
Redactionele publicaties
Reviews door gebruikers
Scoreverdeling
Gemiddelde gebruikersscore
0,0
0 van 5 sterren
Beste beoordeelde review
Goed bord, goede VRM's, ruim voldoende aansluitingen.
Let op Kingston geheugen, werkte niet (Bios F3) , bios (F6) update nodig.
Q Flash Plus systeem werkte bij mij niet, ander (Corsair) geheugen nodig gehad om bios update vanuit het bios te doen.
Pluspunten
Goede VRM's Voldoende aansluitingen Goede prijs
Minpunten
1x M2 heatsink Q Flash Plus (werkte niet)
