Er zijn geen actuele prijzen bekend van dit product.
Specificaties
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD X570 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 - Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
-
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD X570 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 - Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
-
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps
Alles openen
Socket en CPU
-
Socket
AM4
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X570
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB - Compatible modules ECC
-
Opmerkingen geheugen
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Opslag
-
Hardeschijf bus (intern)
3x M.2 (PCI-e 4.0 x4 + SATA), 6x SATA-600 - Aantal M.2 heatsinks 3x
-
Raid-modi
0, 1, 10 -
Opmerkingen opslag
Integrated in the CPU (M2A_SOCKET):
AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 / 3.0 x4/x2 SSD support) (M2B_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 / 3.0 x4/x2 SSD support) (M2C_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 4.0 x1, 3x PCI-e 4.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
Integrated in the CPU (PCIEX16/PCIEX8):
AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™ Processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors / New Generation AMD Ryzen™ with Radeon™ Graphics processors, the PCIEX16 slot operates at up to x8 mode.
Integrated in the CPU (PCIEX16/PCIEX8):
2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/1st Generation AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset (PCIEX4/PCIEX1):
1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)
1 x PCI Express x1 slot, supporting PCIe 4.0/3.0
Netwerk
-
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps - Netwerkcontroller Realtek (variant)
- Tweede netwerkcontroller Intel (variant)
- Netwerkcontroller(s) Intel (variant), Realtek (variant)
Wifi en bluetooth
- Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
-
Bluetooth
Bluetooth 5.0
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt header, 1x USB-C 3.2 (G2, 10Gbit/s) header
-
USB/TB extern
4x USB 2.0 type-A, 2x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C - Overige aansluitingen 1x TPM header
-
Opmerkingen aansluitingen
Integrated in the CPU:
2 x USB 3.2 Gen 2/Gen 1 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Integrated in the Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt™ add-in card connector, optional expansion card available
(Fan) headers
- Headers (fan/water) 7x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x system fan/water cooling pump headers
All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Power, Reset
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Dual BIOS, Geïntegreerd I/O-shield, Nvidia NVLink (SLI)
- Foutdiagnose/display Diagnose-leds, Piepjes
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC1220-VB
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
50A -
Aantal VCore-powerstages
12x -
Rating VCore-vrm
600A -
Vrm-koeling
Fan (actief), Heatsink (passief) - Vrm-opmerkingen Controller: XDPE132G5C
Meer informatie

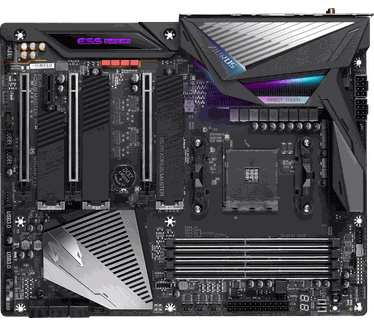

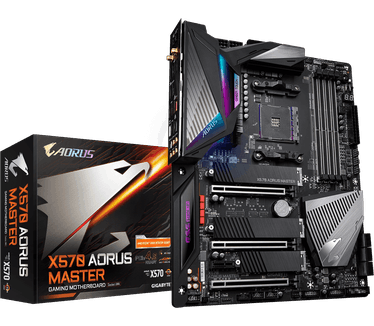

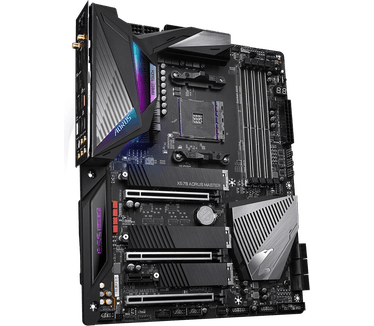

- Product Gigabyte X570 AORUS MASTER
- Categorie Moederborden
- Merk Gigabyte
- Serie AORUS
- Tweakers ID 1753818
- SKU X570 AORUS MASTER (rev. 1.1/1.2), X570 AORUS MASTER 1.2
- Specs van de fabrikant Productinformatie
