Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 503,92 op 5 november 2025.
Specificaties
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD X570 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD X570 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 25 november 2020
Alles openen
Socket en CPU
-
Socket
AM4
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X570
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB - Compatible modules ECC
-
Opmerkingen geheugen
4 x DIMM, Max. 128GB, DDR4 4866(O.C) / 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400(O.C.) / 2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C) / 5000(O.C) / 4866(O.C) / 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) / 3200 / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3200 / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
AMD Ryzen™ 4000 G-Series Desktop Processors
AMD RyzenTM 2000 Series Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL
Opslag
-
Hardeschijf bus (intern)
2x M.2 (PCI-e 4.0 x4), 8x SATA-600 - Aantal M.2 heatsinks 2x
-
Raid-modi
0, 1, 10 -
Opmerkingen opslag
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 4.0 x1, 1x PCI-e 4.0 x4, 2x PCI-e 4.0 x16 -
Totaal PCI-e x16
2x -
Opmerkingen uitbreidingsslots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
AMD RyzenTM 4000 G-Series / 2000 Series Processors
AMD RyzenTM 3000 G-Series / 2000 G-Series Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
Netwerk
-
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps - Netwerkcontroller Realtek RTL8125-CG
- Tweede netwerkcontroller Intel I211AT
- Netwerkcontroller(s) Intel I211AT, Realtek RTL8125-CG
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Bluetooth
Bluetooth 5.1
Aansluitingen
- USB/TB intern (front) 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2, 10Gbit/s) header
-
USB/TB extern
4x USB 3.2 (Gen1, 5Gb/s) type-A, 8x USB 3.2 (Gen2, 10Gb/s) type-A - Overige aansluitingen 1x TPM header
(Fan) headers
- Headers (fan/water) 8x 4-pins (totaal)
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Reset
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Nvidia NVLink (SLI)
- Foutdiagnose/display Diagnose-leds
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 5x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip SupremeFX
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
90A -
Aantal VCore-powerstages
14x -
Rating VCore-vrm
1.260A -
Vrm-koeling
Heatsink (passief) - Vrm-opmerkingen Controller: ASP1405I
Garantie en bijzonderheden
- Fabrieksgarantie 3 jaar carry in
Meer informatie

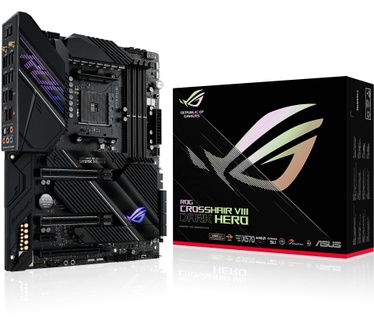

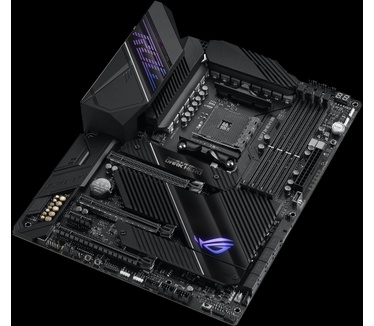

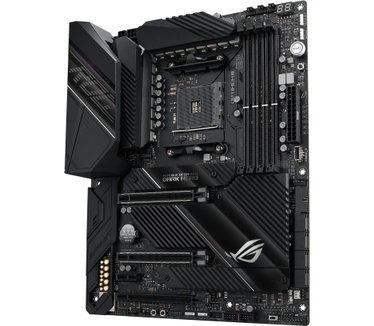

- Product ASUS ROG Crosshair VIII Dark Hero
- Categorie Moederborden
- Merk ASUS
- Serie ROG
- Tweakers ID 1618544
- EAN 4718017961615, 4718017961622
- SKU 90MB1760-M0EAY0, ROG CROSSHAIR VIII DARK HERO
- Specs van de fabrikant Productinformatie
Redactie
Reviews door gebruikers
Scoreverdeling
Gemiddelde gebruikersscore
3,5
3.5 van 5 sterren
1
1
1
1
0
Beste beoordeelde review
Gekocht toen ik van X99 naar Ryzen 5000 ging, presteert top. Opties in de bios zijn er zat, voor overclockers erg leuk bord. Geweldig dat de chipset passief gekoeld is (toen deze uitkwam had bijna elk bord een ventilator voor de chipsetkoeling) in combinatie met een Ryzen 9 5900X, tot op heden bijna probleemloos gebruikt naast twee keer compleet verlies van instellingen in het eerste jaar (verholpen met BIOS-update). Topbord.
Pluspunten
Heel strak ontwerp Geen ventilator voor de chipset PCIE lanes for days
Minpunten
BIOS in de vroege dagen wat instabiel (na updates zo goed als verholpen)
