Belangrijkste specificaties
- Soort accessoire (netwerk) PoE injector
-
Ethernet (RJ45)
1x Ethernet 1Gbps - IPv6 ondersteuning Ja
- Fabrieksgarantie 2 jaar carry in
-
Bijzonderheden
- Enkele poort
- 10/100/1000Mbps
- Ultra PoE injector
- 60 Watts
- Interne voeding
De PLANET POE-172 Ultra Power over Ethernet Injector levert een mamimum vermogen van 60-watt en een high-speed data verbinding overal in uw netwerk infrastructuur.
De PLANET enkelpoort Ultra Power over Ethernet oplossing biedt de volgende producten:
■ POE-172: 60-watt Ultra Power over Ethernet Injector
■ POE-171S: 12V/19V/24V DC Power over Ethernet Splitter
Snel en Eenvoudig een Gigabit Utrapower PoE netwerk installeren
De POE-172 is een Enkel-Poort, Ultra Power over Ethernet Injector met een maximum uitgangsvermogen van watts over power output over Ethernet kabels Hij is speciaal ontworpen om tegemoet te komen aan de groeiende vermogenswens van netwerkapparatuur zoals:
■ PTZ Speed Dome
■ AIO (All-in-One) touch PC
■ Remote digital signage display
■ Andere netwerk apparatuur dat veel vermogen nodig heeft om te functioneren.
The POE-172 delivers the Ethernet digital data with 56V DC power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter, the POE-171S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.
60 watts of Power over 4-pair UTP
The POE-172 and POE-171S Ultra PoE solutions use the same cabling standard such as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.
All-in-One and Compact Size Design

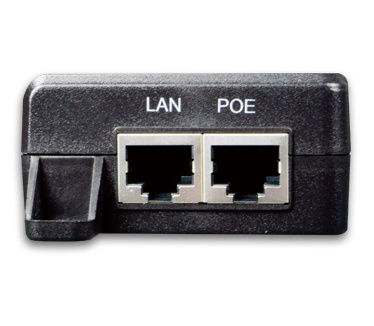

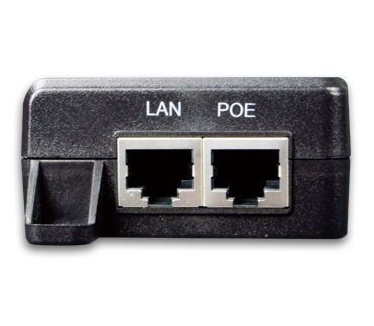

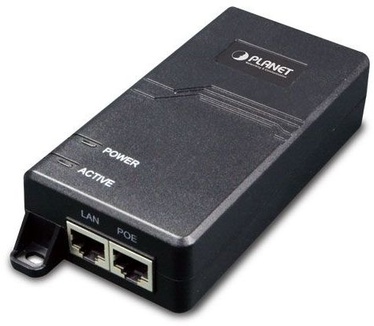

With concepts of "Easy to install”, “Plug and Play” and "Simple troubleshooting" for business and home users, the POE-172 is an all-in-one, single-port PoE+ injector with internal power supply. In the compact size housing, the POE-172 provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE) on the top side and two RJ45 ports (PoE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE-172 is ready to provide high-speed network communication and ultra power PoE injector functions simultaneously with no need of software configuration.
Quick and Easy Cabling Installation for PoE Network Deployment
Backward compatible with both 802.3af and 802.3at PoE standards, the POE-172 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-172 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.
Hardware Specifications
Interface LAN: 1 x RJ45 STP, “Data” Input Port
PoE: 1 x RJ45 STP, “Data + Power” Output Port
AC Connector: 1 x AC input power socket, IEC-320 C6
Network Cable Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
LED Indicator System: Power x 1 (green)
PoE Port: Active, PoE ready/in-use x 1 (green)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 115 x 62.5 x 31 mm
Weight 235g
Unit Output Voltage DC 56V, 1.08A
Power Requirements 100-240V AC @50/60Hz, 1.5A max.
Power Consumption 60 watts max.
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity, non-condensing
Storage Humidity 5 ~ 95%, relative humidity, non-condensing
Power over Ethernet
PoE Standard Ultra PoE over 4-pair UTP cable,
IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE
PoE Power Supply Type End-span + Mid-span
Power Pin Assignment Pair 1 End-span: 1/2 (+), 3/6 (-)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE Power Output DC 56V/60-watt PoE via 4-pair
DC 56V/30-watt PoE via 2-pair
