Specificaties
Belangrijkste specificaties
-
Ethernet (RJ45)
8x Ethernet 1Gbps - SFP/XFP-poorten 2x SFP (1G)
-
Power-over-Ethernet-poorten
8x PoE (802.3af), 8x PoE+ (802.3at) -
Totaal PoE-budget
240W -
Switchtype
Managed -
IPv6 ondersteuning
Belangrijkste specificaties
-
Ethernet (RJ45)
8x Ethernet 1Gbps - SFP/XFP-poorten 2x SFP (1G)
-
Power-over-Ethernet-poorten
8x PoE (802.3af), 8x PoE+ (802.3at) -
Totaal PoE-budget
240W -
Switchtype
Managed -
IPv6 ondersteuning
Verkrijgbaar sinds: 15 september 2018
Alles openen
Poorten
-
Ethernet (RJ45)
8x Ethernet 1Gbps - SFP/XFP-poorten 2x SFP (1G)
Power-over-Ethernet
-
Power-over-Ethernet-poorten
8x PoE (802.3af), 8x PoE+ (802.3at) -
Totaal PoE-budget
240W
Eigenschappen
-
Switchtype
Managed -
IPv6 ondersteuning
- Beheerprotocollen LLDP, RMON1, RMON2, SNMP v1, SNMP v2c, SNMP v3
- Switch layer Layer 2, Layer 3, Layer 4
- Switch eigenschappen Broadcast stormbeheer, IGMP snooping, Jumbo frames, Link aggregation, Multicast, Port mirroring, Quality of Service (QoS), Rate limiting, VLAN
Data-uitwisseling
- Jumbo Frame grootte 9.000Bytes
- Aantal VLANs 255x
- Routing entries 32x
- Entries MAC-adrestabel 8.000x
- Throughput 14,88Mpps
- Wachtrijen 255x
- Maximale bandbreedte 20Gbps
Stroom
-
Stroomverbruik
250,4W
Afmetingen en kleur
-
Hoogte
140mm -
Breedte
180mm -
Diepte
24,4mm -
Kleur
Zwart
Garantie en bijzonderheden
- Fabrieksgarantie 3 jaar carry in
-
Bijzonderheden

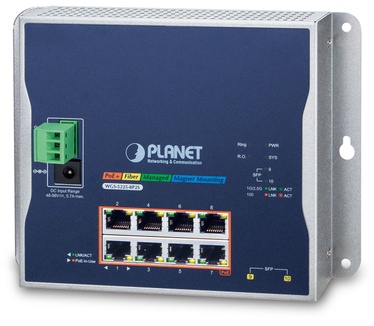

Wandmontage PoE Managed Switch met Geavanceerde L2+/L4 Switching en Beveliging
De PLANET WGS-5225-8P2S is een Industriele Wandmontage PoE Managed Switch die PLANET intelligent PoE functies te verbeteren. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with eight 10/100/1000BASE-T ports featuring 36-watt PoE and two additional 1000BASE-X SFP ports. With a total power budget of up to 240 watts for different kinds of PoE applications, and featuring networking speed and operating temperature ranging from -40 to 75 degrees C in a compact but rugged IP30 metal housing, the WGS-5225-8P2S is an ideal solution to meet the demand for the following network applications:
■ Building/Home automation network
■ Internet of things (IoT)
■ IP surveillance
Redundant Ring, Fast Recovery for Critical Network Applications
The WGS-5225-8P2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and dual power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple ring network, the recovery time of data link can be as fast as 20ms.
Convenient and Smart ONVIF Devices with Detection Feature
PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the WGS-5225-8P2S’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.
Built-in Unique PoE Functions for Powered Devices Management
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-5225-8P2S features the following special PoE management functions:
■ PD alive check
■ Scheduled power recycling
■ PoE schedule
■ PoE usage monitoring
Intelligent Powered Device Alive Check
The WGS-5225-8P2S can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the WGS-5225-8P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
Scheduled Power Recycling
The WGS-5225-8P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-5225-8P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.
Innovative Wall-mount Installation
The WGS-5225-8P2S is specially designed to be installed in a narrow environment, such as wall enclosure or electric weak box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-5225-8P2S placed in an enclosure very convenient for technicians. The WGS-5225-8P2S can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.
SMTP/SNMP Trap Event Alert
The WGS-5225-8P2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.
Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the WGS-5225-8P2S not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.
Meer informatie
- Product Planet WGS-5225-8P2S 8-poort industriële POE Switch
- Categorie Netwerk switches
- Merk Planet
- Tweakers ID 1243095
- EAN 4711605283281
- SKU WGS-5225-8P2S
- Specs van de fabrikant Productinformatie
