Kingston DataTraveler 50 8GB Zilver

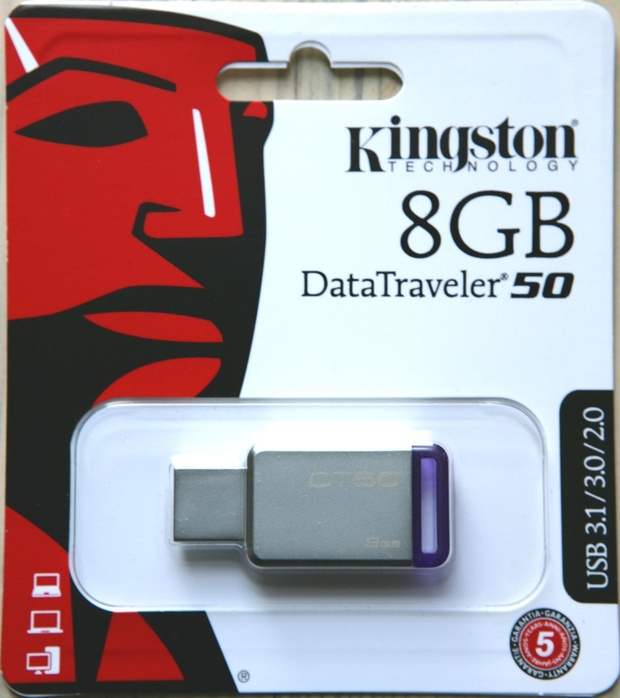

Verpakking

Voorzijde

Achterzijde

Energieverbruik

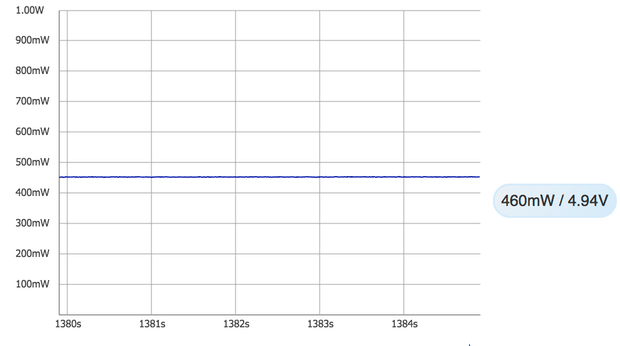

Standby/idle: 0.460 watt / 93 mA

Lezen 4K blokken: 0.496 watt / 100 mA

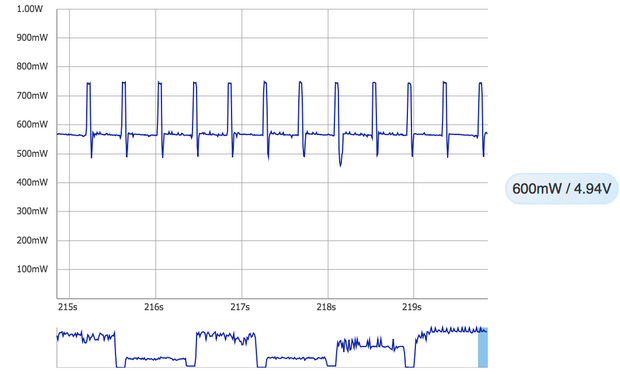

Schrijven: 0.600 watt / 121 mA

Afmetingen

Lengte inclusief connector: 45,07 mm
Breedte: 20,04 mm
Hoogte: 9,10 mm

Connector

breedte: 12,13 mm
hoogte: 4,49 mm
binnenwerkse hoogte gevuld: 2,06 mm
binnenwerkse hoogte open = hoogte - binnenwerkse hoogte gevuld: 2,24 mm
plaatdikte: 0,32 mm

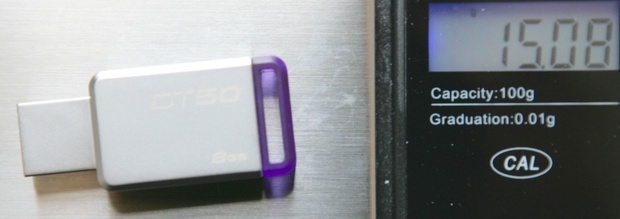

Gewicht: 15,08 gram

Prestaties met CrystalDiskMark

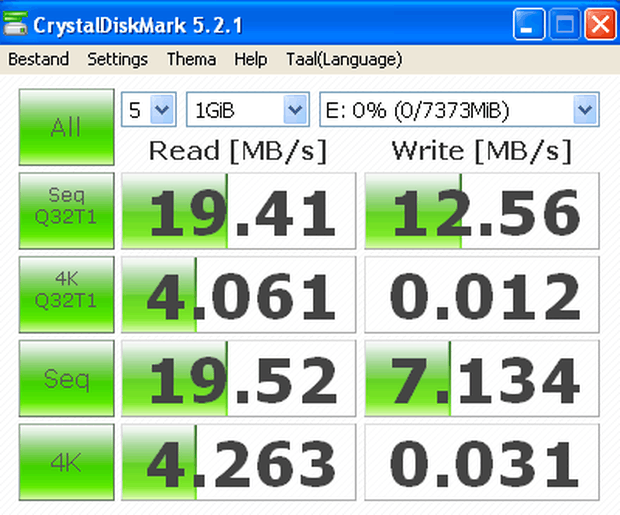

1ste meting (eerste exemplaar)

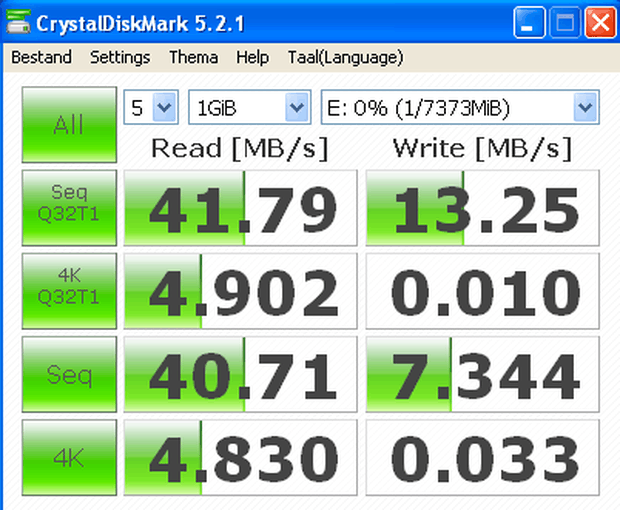

3de meting (eerste exemplaar)

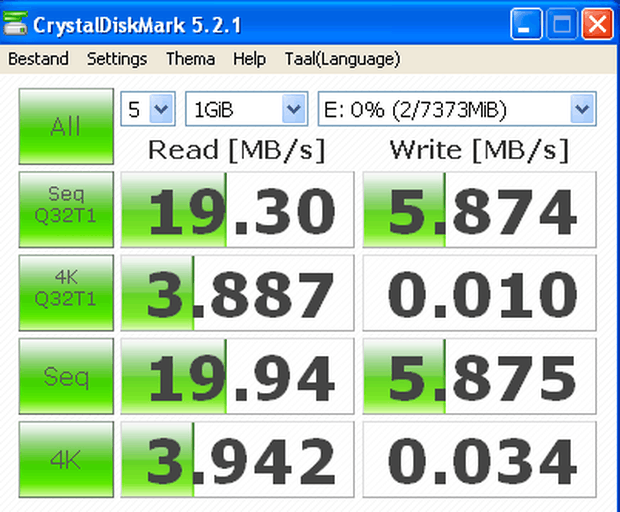

1ste meting (tweede exemplaar)

2de meting (tweede exemplaar)

* MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s]
* KB = 1000 bytes, KiB = 1024 bytes

Sequential Read (Q= 32,T= 1) : 19.44 MB/s
Sequential Write (Q= 32,T= 1) : 6.741 MB/s
Random Read 4KiB (Q= 32,T= 1) : 3.842 MB/s [ 938.0 IOPS]
Random Write 4KiB (Q= 32,T= 1) : 0.012 MB/s [ 2.9 IOPS]
Sequential Read (T= 1) : 19.73 MB/s
Sequential Write (T= 1) : 6.715 MB/s
Random Read 4KiB (Q= 1,T= 1) : 3.752 MB/s [ 916.0 IOPS]
Random Write 4KiB (Q= 1,T= 1) : 0.027 MB/s [ 6.6 IOPS]

Test : 1 GiB [E: 0% (0/7373 MiB)] (x5) [Interval=5 sec]

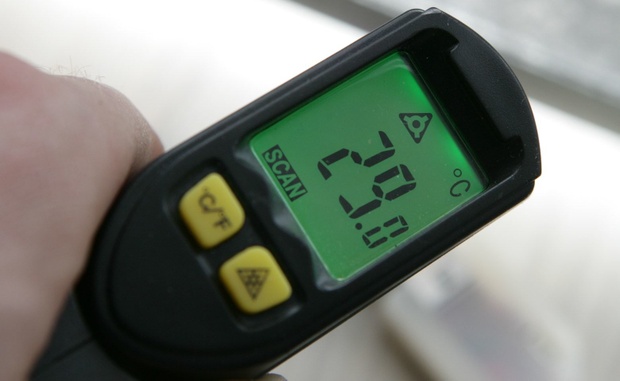

Temperatuur in gebruik: 29ºC

Aangezien andere reviews melding maken van hoge temperaturen tijdens gebruik heb ik twee temperatuursmetingen gedaan tussen de CrystalMark tests door. Bij een omgevingstemperatuur van 23ºC vindt ik 29-30ºC gemeten op de behuizing meevallen als je bedenkt dat de behuizing van de computer zelf 33ºC meet.

ChipGenius

Max Current: 74mA

USB Device ID: VID = 0951 PID = 1666
Serial Number: C81F660E88EDF2B166092B39

Device Vendor: Kingston
Device Name: DataTraveler 3.0
Device Revision: 0001

Manufacturer: Kingston
Product Model: DataTraveler 3.0

Controller Part-Number: Unknown

Antspec Flash drive info

Controller: Unknown
Possible Memory Chip(s): Not available
VID: 0951
PID: 1666
Manufacturer: Kingston
Product: DataTraveler 3.0
Query Vendor ID: Kingston
Query Product ID: DataTraveler 3.0
Query Product Revision:
Physical Disk Capacity: 7736072192 Bytes
Windows Disk Capacity: 7731412992 Bytes
Internal Tags: AC6F-QAHG
File System: FAT32
Relative Offset: 31 KB
USB Version: 2.00
Declared Power: 74 mA
ContMeas ID: FF44-23-00
------------------------------------
Program Version: 9.2.0.627

Linaro flashbench

$ sudo flashbench -a /dev/sdb --blocksize=1024
align 2147483648 pre 470µs on 538µs post 455µs diff 75.1µs
align 1073741824 pre 521µs on 655µs post 536µs diff 126µs
align 536870912 pre 517µs on 592µs post 520µs diff 73.3µs
align 268435456 pre 517µs on 583µs post 516µs diff 66.4µs
align 134217728 pre 518µs on 582µs post 510µs diff 68.9µs
align 67108864 pre 532µs on 589µs post 518µs diff 64.3µs
align 33554432 pre 522µs on 597µs post 517µs diff 77.3µs
align 16777216 pre 521µs on 584µs post 518µs diff 64.1µs
align 8388608 pre 467µs on 532µs post 460µs diff 69.3µs
align 4194304 pre 489µs on 567µs post 512µs diff 65.9µs
align 2097152 pre 482µs on 487µs post 481µs diff 5.69µs
align 1048576 pre 498µs on 515µs post 500µs diff 16.6µs
align 524288 pre 496µs on 506µs post 499µs diff 9.11µs
align 262144 pre 493µs on 512µs post 494µs diff 18.1µs
align 131072 pre 487µs on 498µs post 481µs diff 13.7µs
align 65536 pre 497µs on 504µs post 483µs diff 13.7µs
align 32768 pre 493µs on 509µs post 494µs diff 15.5µs
align 16384 pre 493µs on 513µs post 498µs diff 17.6µs
align 8192 pre 494µs on 509µs post 498µs diff 12.4µs
align 4096 pre 498µs on 504µs post 497µs diff 7.17µs
align 2048 pre 447µs on 449µs post 443µs diff 4.05µs

Find-fat

$ sudo flashbench --find-fat /dev/sdb
4MiB 14M/s 6.68M/s 6.65M/s 6.67M/s 6.64M/s 6.66M/s
2MiB 6.67M/s 6.68M/s 6.65M/s 6.66M/s 6.69M/s 6.64M/s
1MiB 6.68M/s 6.7M/s 6.71M/s 6.7M/s 6.68M/s 6.7M/s
512KiB 6.64M/s 6.69M/s 6.7M/s 6.7M/s 6.65M/s 6.68M/s
256KiB 6.64M/s 6.63M/s 6.69M/s 6.66M/s 6.67M/s 6.66M/s
128KiB 6.45M/s 6.48M/s 6.45M/s 6.41M/s 6.48M/s 6.47M/s
64KiB 6.67M/s 6.7M/s 6.71M/s 6.7M/s 6.69M/s 6.71M/s
32KiB 6.44M/s 6.43M/s 6.43M/s 6.45M/s 6.07M/s 6.46M/s
16KiB 6.02M/s 5.97M/s 6.02M/s 6.01M/s 5.97M/s 6M/s

open UA: 5

$ sudo flashbench -O --erasesize=$[4 * 1024 * 1024] --blocksize=$[256 * 1024] /dev/sdb --random --open-au-nr=1
4MiB 6.68M/s
2MiB 13.8M/s
1MiB 14.3M/s
512KiB 13.5M/s
256KiB 13.2M/s

$ sudo flashbench -O --erasesize=$[4 * 1024 * 1024] --blocksize=$[256 * 1024] /dev/sdb --random --open-au-nr=5
4MiB 14.2M/s
2MiB 13.3M/s
1MiB 14M/s
512KiB 13.3M/s
256KiB 13.8M/s

$ sudo flashbench -O --erasesize=$[4 * 1024 * 1024] --blocksize=$[256 * 1024] /dev/sdb --random --open-au-nr=6
4MiB 8.73M/s
2MiB 6.12M/s
1MiB 4.24M/s
512KiB 2.45M/s
256KiB 1.31M/s
