Specificaties
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
AM5 -
Moederbordchipset
AMD X870 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Alles openen
Socket en CPU
-
Socket
AM5
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X870
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
256GB -
Overklokprofielen
AMD EXPO, Intel XMP -
Opmerkingen geheugen
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 4.0 x2), 1x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600 - Aantal M.2 heatsinks 3x
-
Raid-modi
0, 1, 10 -
Opmerkingen opslag
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x16, 1x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Realtek (variant)
- Netwerkcontroller(s) Realtek (variant)
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) -
Bluetooth
Bluetooth 5.4 - Wifi-controller Realtek RTL8922AE
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
-

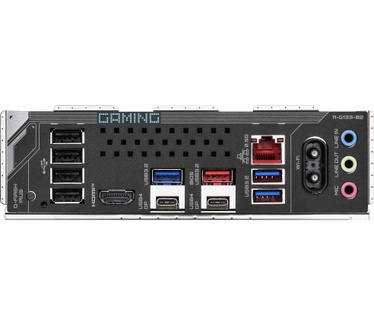

USB/TB extern
4x USB 2.0 type-A, 3x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-A, 2x USB 4 (Gen 3x2, 40Gbps) -
Video uit
1x HDMI, 2x USB type-C - Totaal video-uitgangen 3
- Hoogste HDMI versie HDMI 2.1
- Hoogste DisplayPort versie DisplayPort 1.4
- Overige aansluitingen 1x TPM header
- Opmerkingen aansluitingen 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
(Fan) headers
- Headers (fan/water) 6x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
RGB
- RGB-headers 3x 3-pins (ARGB), 1x 4-pins (RGB)
-
LED verlichting
Overige eigenschappen
- Onboard knoppen Clear CMOS, Power, Reset
- Eigenschappen moederbord BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
- Foutdiagnose/display Diagnose-leds
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 2x Analoog (uitgang), 1x Microfoon (ingang)
Vrm
-
Vrm-koeling
Heatsink (passief)
Garantie en bijzonderheden
- Kleuren Zwart
Meer informatie

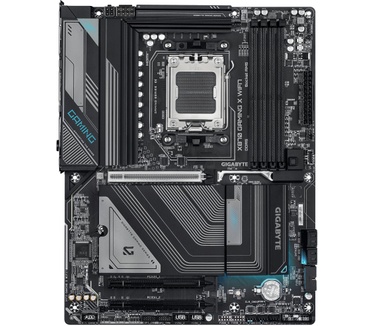

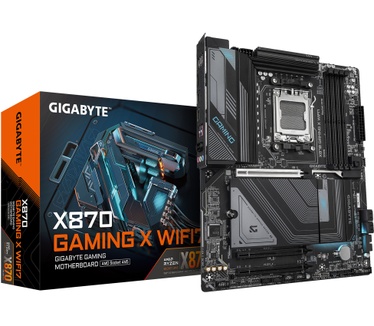

- Product Gigabyte X870 GAMING X WIFI7
- Categorie Moederborden
- Merk Gigabyte
- Tweakers ID 2113338
- SKU X870 GAMING X WIFI7 (rev. 1.1)
- Specs van de fabrikant Productinformatie
