Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 270,37 op 3 september 2025.
Specificaties
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 3 juni 2022
Alles openen
Socket en CPU
-
Socket
1700
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
Intel Z690
Geheugen
-
Geheugentype (moederbord)
4x DDR4 - Compatible modules ECC (in non-ECC mode)
-
Opmerkingen geheugen
4 x DIMM slots, Max. 128GB, Dual-channel DDR4 Memory
> Supports DDR4 Non-ECC, Un-buffered Memory up to 4800+
(OC)*
> Supports ECC UDIMM Memory (operate in non-ECC mode)
> Supports Intel® Extreme Memory Profile (XMP) 2.0
* Supports DDR4 3200 natively
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x4), 1x M.2 (PCI-e 4.0 x4 + SATA), 2x M.2 (PCI-e 4.0 x4), 4x SATA-600 - Aantal M.2 heatsinks 1x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
1 x M.2_1Type 2260/2280 (PCIe Gen 4×4 mode)*
1 x M.2_2Type 2242/2260/2280 (PCIe Gen 4×4 mode)*
1 x M.2_3Type 2260/2280/22110(PCIe Gen 4×4 & SATA6Gb/s modes)*
1 x M.2_4Type 2280 (PCIe Gen 3×4 mode)*
4 x SATA 6Gb/s ports
> Support RAID 0/1/5/10for SATA storage devices
> Supports RAID 0/1/5 for M.2 NVMe storage devices
* Supports Intel® Volume Management Device (VMD)
* Supports Intel® Optane Technology
* Supports NVMe SSD as boot disks - M.2 op CPU Onbekend
Uitbreidingsslots
-
Uitbreidingsslots
1x M.2, 1x PCI-e 3.0 x16, 2x PCI-e 4.0 x1, 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
3 x PCIe ×16 slots*
(Single – PCIe_1: Gen 5 ×16 mode)
(Dual – PCIe_1: Gen 5 ×16; PCIe_3: Gen 4 ×4)
(Triple – PCIe_1: Gen 5 ×16 ; PCIe_3: Gen 4 ×4; PCIe_5: Gen 3 ×1)
2 x PCIe Gen 4 ×1 slots
> Supports AMD Quad CrossFireX™ and CrossFireX™
1 x M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT module, Intel® CNVio
* Supports NVMe SSD as boot disks
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Realtek RTL8125BG
- Netwerkcontroller(s) Realtek RTL8125BG
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Bluetooth
Bluetooth 5.2
Aansluitingen
- USB/TB intern (front) 1x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2, 10Gbit/s) header
-
USB/TB extern
2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C -
Video uit
1x HDMI - Totaal video-uitgangen 1
- Hoogste HDMI versie HDMI 2.1
- Overige aansluitingen 1x TPM header
(Fan) headers
- Headers (fan/water) 6x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x 4-pin CPU_FAN connector (1)
1 x 4-pin AIO_PUMP connector (1)
4 x 4-pin SYS_FAN connectors (1)
(1) CPU_FAN, AIO_PUMP and all SYS_FAN connectors support maximum 2A (24W) per fan header and auto detects if a 3-pin or 4-pin fan is connected.
RGB
- RGB-headers 1x 3-pins (ARGB), 1x 4-pins (RGB)
- Opmerkingen RGB headers 2 x NZXT RGB LED connectors, Supports up to 40 individually addressable LEDs per channel. 80 LEDs total. Lighting channels support up to six addressable RGB LED Strips or five Aer RGB Fans
-
LED verlichting
Overige eigenschappen
- Onboard knoppen Clear CMOS
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
- Foutdiagnose/display Diagnose-leds
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 2x Analoog (uitgang), 1x Microfoon (ingang)
- Audiochip Realtek ALC1220
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
50A -
Aantal VCore-powerstages
8x -
Rating VCore-vrm
400A -
Vrm-koeling
Heatsink (passief) -
Vrm-opmerkingen
Controller: RT3628AE
The VRMs on the N5 featured are an 8+1 design, with eight of the phases being for the Vcore and the ninth being used for the iGPU. All of the phases are made by Vishay and are rated at 50 Amps each.
Power comes from the EPS connectors and onto a Richtek RT3628AE 9-channel controller. Power moves from there and for Vcore onto the 50A Vishay Sic654 DrMOS MOSFETs.
Garantie en bijzonderheden
- Fabrieksgarantie 2 jaar carry in
Meer informatie

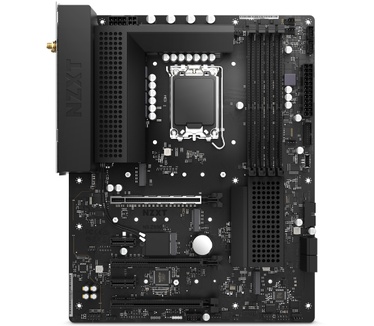

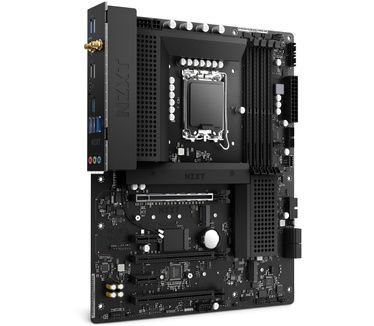

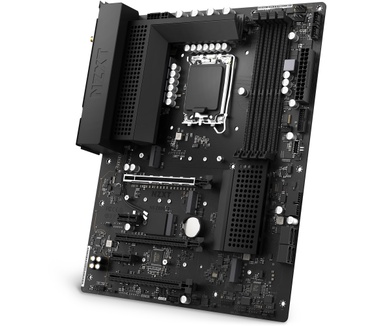

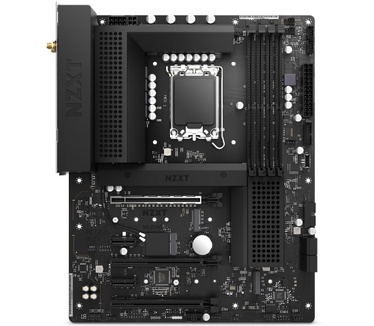

- Product NZXT N5 Z690
- Categorie Moederborden
- Merk NZXT
- Tweakers ID 1825544
- EAN 5056547200149
- SKU N5-Z69XT-B1
- Specs van de fabrikant Productinformatie
