Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 1.500,- op 20 april 2024.
Specificaties
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
2x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
2x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 7 november 2021
Alles openen
Socket en CPU
-
Socket
1700
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
Intel Z690
Geheugen
-
Geheugentype (moederbord)
2x DDR5 -
Maximum grootte werkgeheugen
64GB -
Opmerkingen geheugen
2 x DIMM, Max. 64GB, DDR5 6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC) / 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 6x SATA-600 - Aantal M.2 heatsinks 5x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110
- Intel® 12th Gen processors support PCIe 5.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports***
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
*** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 3.0 x1, 1x PCI-e 3.0 x4, 2x PCI-e 5.0 x16 -
Totaal PCI-e x16
2x -
Opmerkingen uitbreidingsslots
Intel® 12th Gen Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)*
Intel® Z690 Chipset**
1 x PCIe 3.0 x4 slot
1 x PCIe 3.0 x1 slot
* When the PCIE 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Intel (variant)
- Netwerkcontroller(s) Intel (variant)
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Bluetooth
Bluetooth 5.2
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt 4 header, 1x USB-C 3.2 (G2, 10Gbit/s) header
-
USB/TB extern
4x USB 3.2 (Gen1, 5Gb/s) type-A, 5x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C - Overige aansluitingen 2x PS/2
(Fan) headers
- Headers (fan/water) 9x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
2 x 4-pin Full Speed Fan header(s)
1 x W_PUMP+ header(s)
1 x 2-pin Water In header
1 x 2-pin Water Out header
RGB
- RGB-headers 3x 3-pins (ARGB), 1x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Clear CMOS, Power, Reset
- Eigenschappen moederbord BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
- Foutdiagnose/display Diagnose-leds, HEX-display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC4080
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
105A -
Aantal VCore-powerstages
24x -
Rating VCore-vrm
2.520A -
Vrm-koeling
Heatsink (passief)
Meer informatie

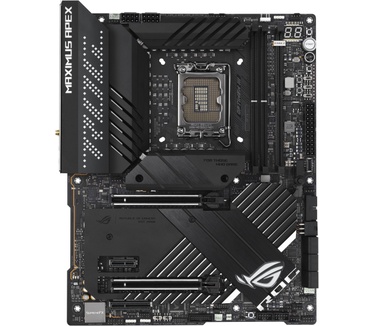

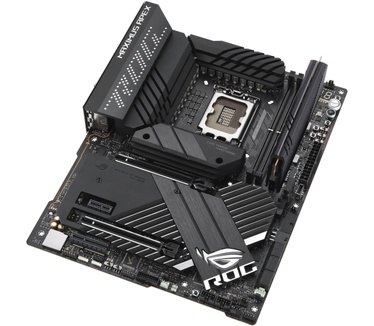

- Product ASUS ROG MAXIMUS Z690 APEX
- Categorie Moederborden
- Merk ASUS
- Serie ROG
- Tweakers ID 1764782
- EAN 4711081468509
- SKU 90MB18I0-M0EAY0
- Specs van de fabrikant Productinformatie
