Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 348,02 op 9 februari 2026.
Specificaties
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
EATX (Extended ATX) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
2x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
EATX (Extended ATX) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
2x Ethernet 2.5Gbps
Verkrijgbaar sinds: 19 november 2021
Alles openen
Socket en CPU
-
Socket
1700
Form factor, bios en chipset
-
Form Factor
EATX (Extended ATX) -
Moederbordchipset
Intel Z690
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
128GB -
Opmerkingen geheugen
4x DDR5 memory slots, supporting up to 128GB
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6666+ MHz
1DPC 2R Max speed up to 5600+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x4), 2x M.2 (PCI-e 4.0 x4 + SATA), 2x M.2 (PCI-e 4.0 x4), 6x SATA-600 - Aantal M.2 heatsinks 5x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
6x SATA 6Gb/s ports (From Z690 chipset)
SATA5~8 (From Z690 chipset)
SATAA~B (From ASM1061)
5x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 & M2_3 slots (From Z690 chipset)
M2_2 slot supports up to PCIe 4.0 x4
M2_3 slot supports up to PCIe 3.0 x4
Supports 2260/ 2280 storage devices
M2_4 & M2_5 [1] slots (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
M2_4 slot supports 2280/ 22110 storage devices
M2_5 slot supports 2260/ 2280 storage devices
M2_2~5 slots support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
[1]SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices [2]
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
[2]SATAA & SATAB do not support RAID function. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 4.0 x16, 2x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
3x PCIe x16 slots
Supports x16/x0/x4, x8/x8/x4
PCI_E1 & PCI_E2 slots (From CPU)
PCI_E1 supports up to PCIe 5.0 x16
PCI_E2 supports up to PCIe 5.0 x8
PCI_E3 [1] (From Z690 chipset)
▫Supports up to PCIe 4.0 x4
[1]PCI_E3 & M2_4 share the bandwidth. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing devices in both slots.
Netwerk
-
Ethernet (RJ45)
2x Ethernet 2.5Gbps - Netwerkcontroller Intel I225-V
- Netwerkcontroller(s) I225-V
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Bluetooth
Bluetooth 5.2
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 2x USB-C 3.2 (G2, 10Gbit/s) header
-
USB/TB extern
2x Thunderbolt 4 type-C, 7x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C -
Video uit
2x Thunderbolt 4, 1x USB type-C - Totaal video-uitgangen 3
- Video in (voor TB/USB-c) 2x Mini DisplayPort
- Hoogste DisplayPort versie DisplayPort 1.4
- Overige aansluitingen 1x TPM header
-
Opmerkingen aansluitingen
Intel® Z690 Chipset
2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors)
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel)
Hub-GL3590
4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
ASM1074
4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connecto
Hub-GL850G
4x USB 2.0 Type-A ports available through the internal connectors
2x Mini DisplayPort Input (for Thunderbolt passthrough)
(Fan) headers
- Headers (fan/water) 8x 4-pins (totaal)
-
(default) Fanconfiguratie
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
RGB
- RGB-headers 2x 3-pins (ARGB), 1x 4-pins (RGB)
- Opmerkingen RGB headers 1x 3-pin CORSAIR LED connector
-
LED verlichting
Overige eigenschappen
- Onboard knoppen Clear CMOS
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield, Nvidia NVLink (SLI)
- Foutdiagnose/display Diagnose-leds, HEX-display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC4082 + ESS SABRE9018Q2C
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
105A -
Aantal VCore-powerstages
19x -
Rating VCore-vrm
1.995A -
Vrm-koeling
Heatsink (passief)
Meer informatie

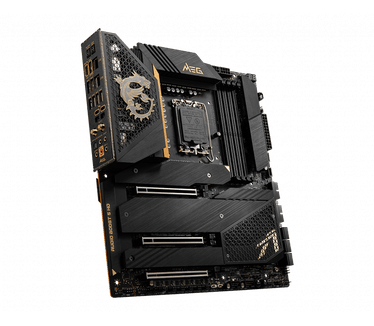

- Product MSI MEG Z690 ACE
- Categorie Moederborden
- Merk MSI
- Tweakers ID 1760430
- EAN 4719072886493
- SKU 7D27-001R, 7D27-002R, MEG Z690 ACE
- Specs van de fabrikant Productinformatie
