Er zijn geen actuele prijzen bekend van dit product.
Specificaties
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
EATX (Extended ATX) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
EATX (Extended ATX) -
Geheugentype (moederbord)
4x DDR5 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G
Alles openen
Socket en CPU
-
Socket
1700
Form factor, bios en chipset
-
Form Factor
EATX (Extended ATX) -
Moederbordchipset
Intel Z690
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
128GB -
Opmerkingen geheugen
Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 4.0 x4 + SATA), 2x M.2 (PCI-e 4.0 x4), 6x SATA-600 - Aantal M.2 heatsinks 3x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 3.0 x16, 2x PCI-e 5.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G - Netwerkcontroller Marvell AQtion AQC113C
- Tweede netwerkcontroller Intel (variant)
- Netwerkcontroller(s) AQC113C, Intel (variant)
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Bluetooth
Bluetooth 5.2 - Wifi-controller Intel Wi-Fi 6E AX210

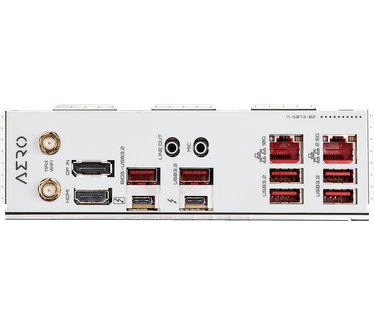

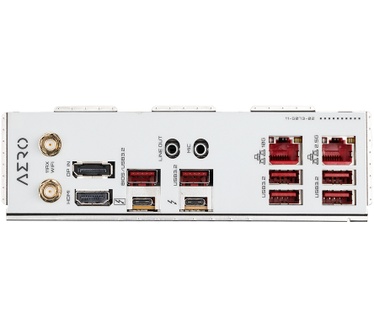

Aansluitingen
- USB/TB intern (front) 3x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
-
USB/TB extern
2x Thunderbolt 4 type-C, 6x USB 3.2 (Gen2, 10Gb/s) type-A -
Video uit
1x HDMI, 2x Thunderbolt 4 - Totaal video-uitgangen 3
- Hoogste HDMI versie HDMI 1.4
- Overige aansluitingen 1x TPM header
-
Opmerkingen aansluitingen
1 x DisplayPort In port
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Chipset+Intel® Thunderbolt™ 4 Controller:
2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports available through the internal USB headers
(Fan) headers
- Headers (fan/water) 8x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
3 x system fan/water cooling pump headers
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Reset
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 1x Analoog (uitgang), 1x Microfoon (ingang)
- Audiochip Realtek ALC4080 + ALC897
Garantie en bijzonderheden
- Fabrieksgarantie 3 jaar carry in
Meer informatie

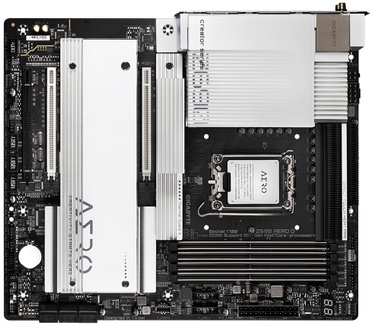

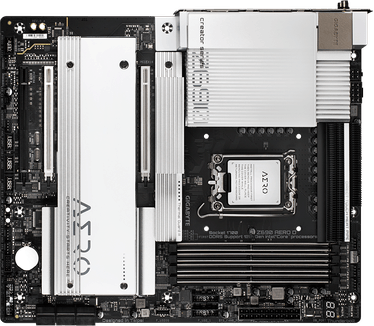

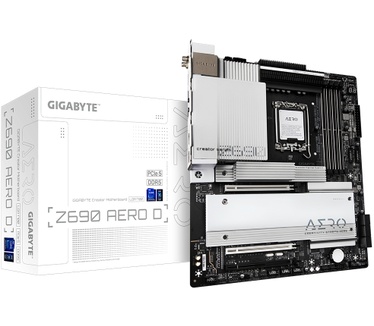

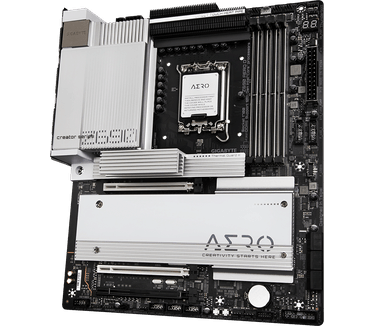

- Product Gigabyte Z690 AERO D (rev. 1.0)
- Categorie Moederborden
- Merk Gigabyte
- Serie AERO
- Tweakers ID 1760304
- SKU Z690 AERO D, Z690 AERO D (rev. 1.0)
- Specs van de fabrikant Productinformatie
