Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 212,23 op 17 oktober 2023.
Specificaties
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel B560 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Ethernet (RJ45)
1x Ethernet 2.5Gbps -
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel B560 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Ethernet (RJ45)
1x Ethernet 2.5Gbps -
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Verkrijgbaar sinds: 16 maart 2021
Alles openen
Socket en CPU
-
Socket
1200
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
Intel B560
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB -
Opmerkingen geheugen
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
- 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
*11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 3.0 x4), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600 - Aantal M.2 heatsinks 2x
-
Opmerkingen opslag
- 6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)**
- 1 x M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
**Supports Intel® Optane™ Technology (M2_3)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16 -
Totaal PCI-e x16
2x -
Opmerkingen uitbreidingsslots
11th Gen Intel® Core™ Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))*
10th Gen Intel® Core™ Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))*
- 2 x PCI Express 3.0 x1 Slots
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Realtek RTL8125BG
- Netwerkcontroller(s) Realtek RTL8125BG
Aansluitingen
- USB/TB intern (front) 1x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
-
USB/TB extern
2x USB 2.0 type-A, 3x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C -
Video uit
1x DisplayPort, 1x HDMI - Totaal video-uitgangen 2
- Hoogste DisplayPort versie DisplayPort 1.4
- Overige aansluitingen 1x PS/2, 1x TPM header
(Fan) headers
- Headers (fan/water) 7x 4-pins (totaal)
-
(default) Fanconfiguratie
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC897
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
50A -
Aantal VCore-powerstages
6x -
Rating VCore-vrm
300A -
Vrm-koeling
Heatsink (passief) - Vrm-opmerkingen Controller: RT3609BE
Meer informatie

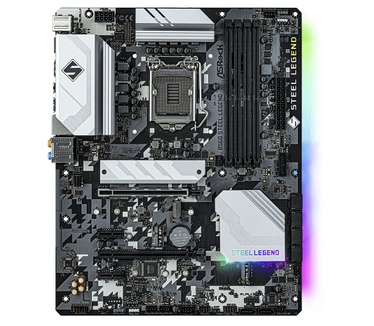

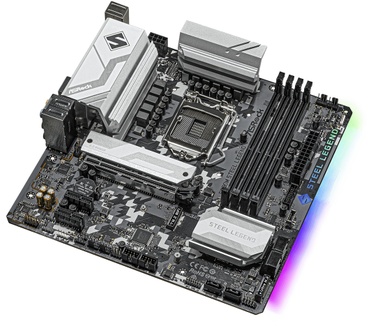

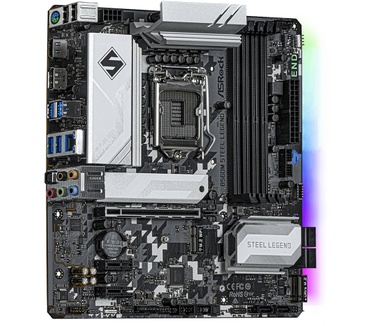

- Product ASRock B560 Steel Legend
- Categorie Moederborden
- Merk ASRock
- Tweakers ID 1667874
- EAN 4710483933745
- SKU 90-MXBFD0-A0UAYZ, B560 STEEL LEGEND
- Specs van de fabrikant Productinformatie
Reviews door gebruikers
Scoreverdeling
Gemiddelde gebruikersscore
0,0
0 van 5 sterren
Beste beoordeelde review
Goed B560 board, gecombineerd met 3200Mhz, simpel XMP aanzetten in het bios, wat verder wat rommelig oogt, CPU fan kun je meteen instellen, casefans weer via een heel ander scherm/menu, beetje omslachtig. Zelfde bios als de B560M Steel Legend en Pro4
Pluspunten
Sneller geheugen bruikbaar USB-C front aansluiting Veel RGB Voldoende aansluitingen
Minpunten
Bios oogt wat rommelig RGB (Als je daar niet van houd, simpel uit te zetten in bios)
