Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 175,- op 3 mei 2024.
Specificaties
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel Z590 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel Z590 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 12 maart 2021
Alles openen
Socket en CPU
-
Socket
1200
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
Intel Z590
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB - Compatible modules ECC (in non-ECC mode)
-
Opmerkingen geheugen
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 3.0 x4), 1x M.2 (PCI-e 4.0 x4), 5x SATA-600 - Aantal M.2 heatsinks 1x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
5 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
(Note) Supported by 11th Generation processors only. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16 -
Totaal PCI-e x16
2x -
Opmerkingen uitbreidingsslots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
(Note) Supported by 11th Generation processors only.
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Realtek (variant)
- Netwerkcontroller(s) Realtek (variant)
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) -
Bluetooth
Bluetooth 5.1 - Wifi-controller Intel Dual Band Wireless-AC 9462
Aansluitingen
- USB/TB intern (front) 2x Thunderbolt header
-
USB/TB extern
2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A -
Video uit
1x DisplayPort - Totaal video-uitgangen 1
- Overige aansluitingen 1x PS/2
-
Opmerkingen aansluitingen
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors, kaart optioneel verkrijgbaar
(Fan) headers
- Headers (fan/water) 5x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x CPU fan header
4 x system fan headers
All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
Overige eigenschappen
- Eigenschappen moederbord BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 2x Analoog (uitgang), 1x Microfoon (ingang)
Vrm
-
Vrm-koeling
Heatsink (passief), Nee
Meer informatie

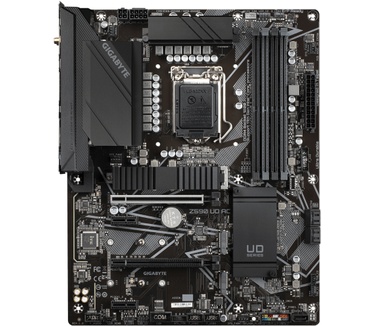

- Product Gigabyte Z590 UD AC
- Categorie Moederborden
- Merk Gigabyte
- Tweakers ID 1662858
- EAN 4719331814878
- SKU Z590 UD AC
- Specs van de fabrikant Productinformatie
