Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 354,87 op 19 september 2023.
Specificaties
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel Z590 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel Z590 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 12 maart 2021
Alles openen
Socket en CPU
-
Socket
1200
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
Intel Z590
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB - Compatible modules ECC
-
Opmerkingen geheugen
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Opslag
-
Hardeschijf bus (intern)
2x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600 - Aantal M.2 heatsinks 1x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
*Supported by 11th Generation processors only.
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 4.0 x1, 2x PCI-e 4.0 x16 -
Totaal PCI-e x16
2x -
Opmerkingen uitbreidingsslots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Realtek (variant)
- Netwerkcontroller(s) Realtek (variant)
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) -
Bluetooth
Bluetooth 5.1 - Wifi-controller Intel Wi-Fi 6 AX201
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt header, 1x USB-C 3.2 (G2, 10Gbit/s) header
-
USB/TB extern
4x USB 2.0 type-A, 3x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C -
Video uit
1x DisplayPort - Totaal video-uitgangen 1
- Hoogste DisplayPort versie DisplayPort 1.2
-
Opmerkingen aansluitingen
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors, card optional
(Fan) headers
- Headers (fan/water) 6x 4-pins (totaal)
-
(default) Fanconfiguratie
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
RGB
- RGB-headers 2x 3-pins (ARGB), 2x 4-pins (RGB)
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB)
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
- Audiochip Realtek ALC1220-VB
Vrm
-
Vrm-koeling
Heatsink (passief)
Meer informatie

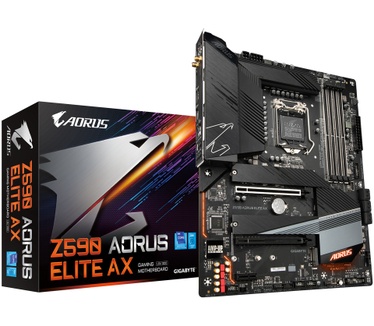

- Product Gigabyte Z590 AORUS ELITE AX
- Categorie Moederborden
- Merk Gigabyte
- Serie AORUS
- Tweakers ID 1662838
- EAN 4719331814854
- SKU Z590 AORUS ELITE AX, Z590AORUS ELITE AX
- Specs van de fabrikant Productinformatie
Redactionele publicaties
:strip_exif()/i/2005085522.jpeg?f=usericonsmall){kind=small}
26 april 2021
Betaalbare Intel Z590-moederborden - Basis voor Rocket Lake met PCIe 4.0
De Gigabyte Z590 Aorus Elite AX lijkt qua specificaties veel op de goedkopere Gaming X, maar is geheel in de Aorus-huisstijl gestoken en heeft bovendien wifi. Helaas heeft Gigabyte niet voor de nieuwste controller met WiFi-6E gekozen. Lees verder »
