Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 107,09 op 5 april 2023.
Specificaties
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel B460 -
Form Factor
Micro-ATX (µATX) -
Geheugentype (moederbord)
2x DDR4 -
Ethernet (RJ45)
1x Ethernet 1Gbps -
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel B460 -
Form Factor
Micro-ATX (µATX) -
Geheugentype (moederbord)
2x DDR4 -
Ethernet (RJ45)
1x Ethernet 1Gbps -
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16
Verkrijgbaar sinds: 17 juni 2020
Alles openen
Socket en CPU
-
Socket
1200
Form factor, bios en chipset
-
Form Factor
Micro-ATX (µATX) -
Moederbordchipset
Intel B460
Geheugen
-
Geheugentype (moederbord)
2x DDR4 -
Maximum grootte werkgeheugen
64GB -
Opmerkingen geheugen
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x4 + SATA), 6x SATA-600 - Aantal M.2 heatsinks 1x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
Intel® B460 Chipset
6x SATA 6Gb/s ports
1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
Intel® Optane™ Memory Ready2
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M.2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16 -
Totaal PCI-e x16
1x -
Opmerkingen uitbreidingsslots
1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots
Netwerk
-
Ethernet (RJ45)
1x Ethernet 1Gbps - Netwerkcontroller Realtek RTL8111H
- Netwerkcontroller(s) Realtek RTL8111H

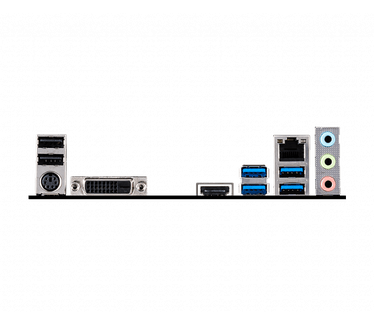

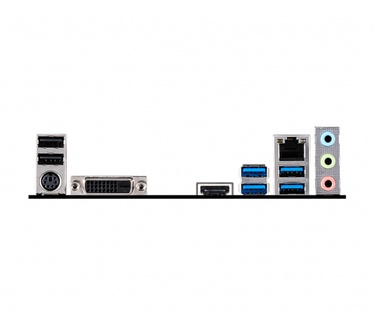

Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header
-
USB/TB extern
2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A -
Video uit
1x DVI-D, 1x HDMI - Totaal video-uitgangen 2
- Hoogste HDMI versie HDMI 1.4
- Overige aansluitingen 1x PS/2, 1x TPM header
(Fan) headers
- Headers (fan/water) 2x 4-pins (totaal)
-
(default) Fanconfiguratie
1x 4-pin CPU fan connector
1x 4-pin system fan connector
RGB
-
LED verlichting
Overige eigenschappen
- Foutdiagnose/display Diagnose-leds
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 2x Analoog (uitgang), 1x Microfoon (ingang)
- Audiochip Realtek ALC892
Vrm
-
Vrm-koeling
Meer informatie

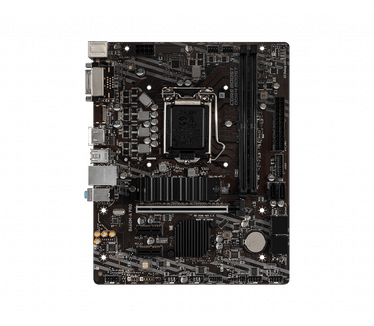

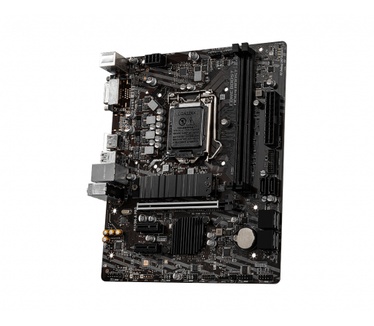

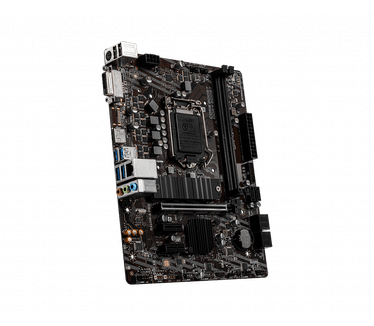

- Product MSI B460M-A PRO
- Categorie Moederborden
- Merk MSI
- Tweakers ID 1570828
- EAN 4719072729356
- SKU 7C88-002R, B460M-A PRO
- Specs van de fabrikant Productinformatie
Reviews door gebruikers
Scoreverdeling
Gemiddelde gebruikersscore
5,0
5 van 5 sterren
1
0
0
0
0
Beste beoordeelde review
Zeer degelijk moederbord, kwaliteits componenten, M.2 koellichaam, maar liefst 6 SATA aansluitingen.
MSI bewijst met dit budget board ook nog steeds tot de top te behoren, probleemloos moederbord.
Pluspunten
Kwaliteits componenten M.2 slot met koellichaam en zacht thermisch interface material Fantastische BIOS, zeer luxe, muis te bedienen Duidelijke manual en tekst op het bord. Prijsgunstig
Minpunten
"Maar" 2 SATA kabeltjes Tekst op shield gestansd, niet zo goed leesbaar.
