Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 501,47 op 28 februari 2023.
Specificaties
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD X570 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD X570 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 9 juli 2019
Alles openen
Socket en CPU
-
Socket
AM4
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X570
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB
Opslag
-
Hardeschijf bus (intern)
2x M.2 (PCI-e 4.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 4x SATA-600 -
Raid-modi
0, 1, 10
Uitbreidingsslots
-
Opmerkingen uitbreidingsslots
M.2 (PCI-e 4.0 x4) slot schakelt terug naar 3.0 modus icm Ryzen 2 en 1.
2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 modes
2nd Gen AMD Ryzen™ support PCIe 3.0 x16/x0, x8/x8 modes
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode[1]
1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode)
2x PCIe 4.0/ 3.0 x1 slots[2]
[1]PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen™ processors.
[2]The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
[3]The speeds may vary for different devices
Netwerk
-
Ethernet (RJ45)
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps - Netwerkcontroller Realtek RTL8125AG
- Tweede netwerkcontroller Intel I211AT
- Netwerkcontroller(s) Intel I211AT, Realtek RTL8125AG
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) -
Bluetooth
Bluetooth 5.0
Aansluitingen
- Overige aansluitingen 1x PS/2, 1x TPM header
(Fan) headers
- Headers (fan/water) 5x 4-pins (totaal)
RGB
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB)
- Foutdiagnose/display Diagnose-leds, HEX-display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 3x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
- Audiochip Realtek ALC1220
Meer informatie

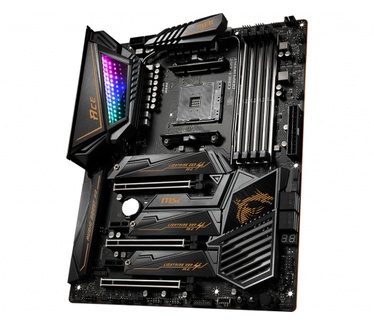

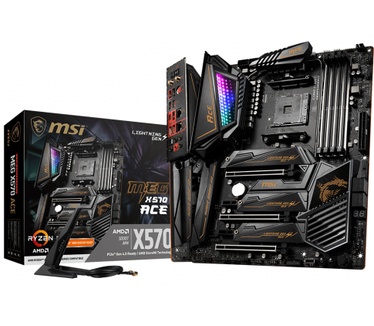

- Product MSI MEG X570 ACE
- Categorie Moederborden
- Merk MSI
- Tweakers ID 1422390
- EAN 4719072652487
- SKU 7C35-002R, 911-7C35-002, MEG X570 ACE
- Specs van de fabrikant Productinformatie
Reviews door gebruikers
Scoreverdeling
Gemiddelde gebruikersscore
4,5
4.5 van 5 sterren
3
3
0
0
0
Beste beoordeelde review
Een goed moederbord waarbij de grote featureset aanspreekt. Het moederbord heeft veel RGB-headers, interne headers voor USB(3.1 1x, 3.0 2x, 2.0 2x) en genoeg poorten achterop, ingebouwde Wi-Fi/bluethooth antenne en een chipset-fan met 0 rpm-modus. Het moederbord werkt stabiel en de compatibiliteit met Razer Chroma is een mooie RGB-extra.
Pluspunten
Goede ondersteuning voor samenwerking met andere RGB systemen (Subjectief) mooi uiterlijk Goed instelbare fan-curves in UEFI Chipset-fan met 0 rpm-modus A-XMP ondersteuning 2.5 gigabit ethernet en 1 gigabit intel ethernet Debugcode scherm
Minpunten
Probleem bij linken met chroma waarbij RAM RGB gaat flikkeren Dragon Center software mist fan-control Zinloze Game Boost overklokfunctie en draaiknop
