Belangrijkste specificaties
- Soort accessoire (netwerk) PoE injector
-
Ethernet (RJ45)
16x Ethernet 1Gbps - IPv6 ondersteuning Ja
- Fabrieksgarantie 2 jaar carry in
-
Bijzonderheden
- Ultra Power Gigabit Injector HUB
- 16 ports
- Managed
- 600 Watts Power budget
- POE-schedule
PLANET Ultra PoE Managed Injector Hub series, a cost-effective and quick Ultra PoE solution, is designed to perfectly upgrade an existing network infrastructure to Ultra Power over Ethernet network system without replacing the existing Ethernet Switch.
Ready to Deploy Next Generation Power over Ethernet

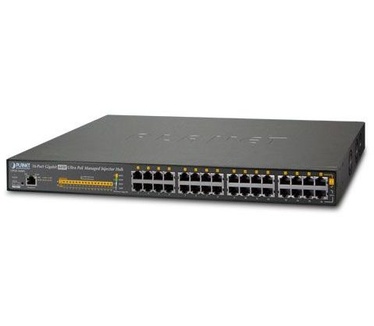

The UPOE-1600G is a high-density, rack-mountable managed Ultra PoE injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 16 10/100/1000BASE-T Ethernet ports featuring Ultra PoE injector with a total PoE budget of 600 watts. Each PoE port can deliver up to 60-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 60W and 802.3at/af powered device (PD). The UPOE-1600G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
Quick and Easy PoE Network Deployment

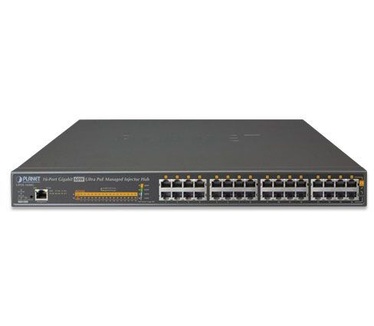

The UPOE-1600G is installed between a regular Ethernet Switch and the PDs. There are totally 32 RJ45 STP ports on the front panel of the UPOE-1600G, of which the16 ports are on the lower stack functioned as "Data input" while the other 16 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.
With data and Power over Ethernet from one unit, the UPOE-1600G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
802.3bt Ready -- 60 Watts of Power over 4-Pair UTP System
The UPOE-1600G Ultra PoE solution adopts the IEEE 802.3at/af PoE standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pin 1, 2, 3 and 6) or mid-span (Pin 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, the UPOE-1600G is able to deliver per port up to 60 watts of power to each remote PoE compliant powered device. It possesses double amount of power capability than the conventional 802.3at PoE and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:
■ PoE PTZ speed dome
■ Any network device that needs higher PoE power to work normally
■ Thin-client
■ AIO (all-in-one) touch PC, point of sale (POS) and information kiosks
■ Remote digital signage display
Friendly Web Management Interface
To efficiently manage the powered devices, the UPOE-1600G provides simple Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.
Hardware
Interface ■ “Data” Input Ports: 16 x RJ45
■ “Data + Power” Output Ports: 16 x RJ45
■ Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation,
auto-MDI/MDIX
Data Rate 10/100/1000Mbps
LED System:
SYS PWR x 1 (Green)
PoE Failure x 1 ( Red )
Fan Failure x 2 ( Red )
Management port x 2:
1000 (Green), 10/100(Orange)
Per PoE Port:
Ultra 60W PoE-in-use x 1 (Green)
802.3at/af PoE-in-use x1 (Orange)
PoE Power Usage LED x4 (Green)
Power Requirements 100-240V AC, 50/60 Hz, 8A
Power Consumption 800 watts (max.)/2729BTU
Ventilation Fan x 3
Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U height
Enclosure Metal
Weight 4.8kg
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
4-pair Ultra PoE
PoE Power Supply Type End-span/Mid-span/UPoE(Ultra PoE)
Power Pin Assignment Pair 1 end-span: 1/2(-), 3/6(+)
Pair 2 mid-span: 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Output DC 52V/60-watt PoE via 4-pair
DC 52V/30-watt PoE via 2-pair
PoE Power Budget 600 watts/2047BTU
Number of 60W PDs can be powered 10
Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered 16
Number of 802.3at PDs (Class 1, 2, 3) can be powered 16
Number of 802.3at PDs (Class 0, 4) can be powered 16
Management
Management Interface Web, PLANET Smart Discovery Lite
PoE Management Power limit by consumption and allocation
PoE admin mode
Per port power schedule
Per port power enable/disable
