Populaire specificaties |
|
---|---|
|
1851 |
|
Intel Z890 |
|
Mini-ITX |
|
2x DDR5 |
|
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
|
1x Ethernet 5Gbps |
Socket en CPU |
|
---|---|
|
1851 |
Form factor, bios en chipset |
|
---|---|
|
Mini-ITX |
|
Intel Z890 |
Geheugen |
|
---|---|
|
2x DDR5 |
|
128GB |
Compatible modules | CUDIMM |
|
Intel XMP |
Opmerkingen geheugen |
1DPC 1R Up to 9466+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively. |
Opslag |
|
---|---|
|
1x M.2 (PCI-e 4.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 2x SATA-600 |
Aantal gekoelde M.2 slots | 3x |
|
0, 1, 5, 10 |
Opmerkingen opslag |
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * Requires additional M.2 NVMe expansion cards to support RAID 10 |
M.2 op CPU | WEL op cpu |
Uitbreidingsslots |
|
---|---|
|
1x M.2, 1x PCI-e 5.0 x16 |
|
1x |
Opmerkingen uitbreidingsslots |
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. Supports NVMe SSD as boot disks |
Netwerk |
|
---|---|
|
1x Ethernet 5Gbps |
Netwerkcontroller | Realtek RTL8126 |
Netwerkcontroller(s) | RTL8126 |
Wifi en bluetooth |
|
---|---|
|
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
|
Bluetooth 5.4 |
Aansluitingen |
|
---|---|
USB/TB intern (front) | 1x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header |
|

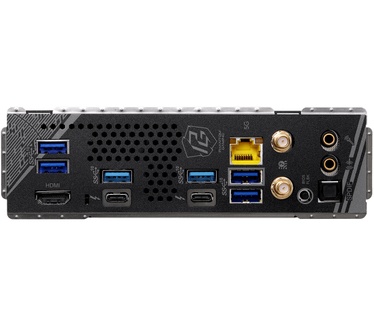

2x Thunderbolt 4 type-C, 6x USB 3.2 (Gen2, 10Gb/s) type-A |
|
1x HDMI, 2x Thunderbolt 4 |
Totaal video-uitgangen | 3 |
Hoogste HDMI versie | HDMI 2.1 |
Hoogste DisplayPort versie | DisplayPort 1.4 |
(Fan) headers |
|
---|---|
Headers (fan/water) | 3x 4-pins (totaal) |
(default) Fanconfiguratie |
- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** ** CPU_FAN and CHA_FAN1 support the fan power up to 2A (24W). *** AIO_PUMP supports the fan power up to 3A (36W). AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
RGB |
|
---|---|
RGB-headers | 2x 3-pins (ARGB) |
|
|
LED kleur | Multi-color |
Overige eigenschappen |
|
---|---|
Eigenschappen moederbord | BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield |
Audio |
|
---|---|
Audio kanalen | 8 (7.1) |
Audio-aansluitingen | 1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang) |
Audiochip | Realtek ALC4082 |
Vrm |
|
---|---|
|
Powerstages |
|
110A |
|
12x |
|
1.320A |
|
Heatsink (passief) |
Meer informatie |
|
---|---|

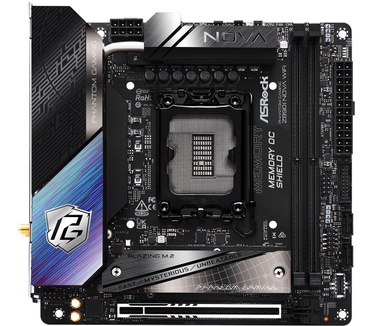

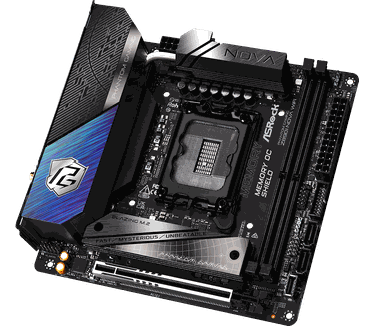

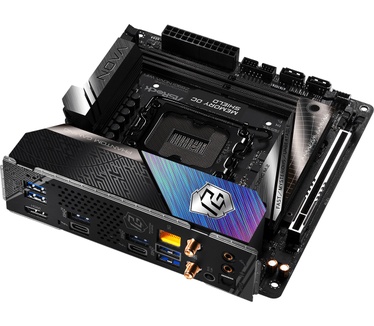

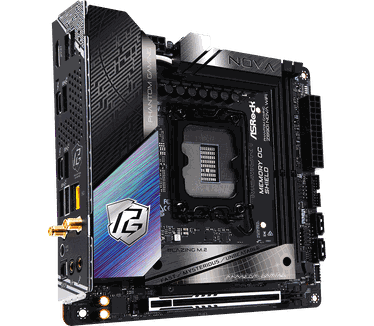

Product | ASRock Phantom Gaming Z890I Nova WiFi |
Categorie | Moederborden |
Merk | ASRock |
Serie | Phantom Gaming |
Tweakers ID | 2121336 |
EAN | 4710483949739 |
SKU | 90-MXBPN0-A0UAYZ, PG Z890I Nova WiFi, Phantom Gaming Z890I Nova WiFi |
Specs van de fabrikant | Productinformatie |
Lees meer over hoe Tweakers producten test.
Testcondities |
|
---|---|
Processor | Intel Core Ultra 9 285K Boxed |
HDD / SSD | WD Black SN770 1TB |
vBIOS | 2.22 |
Koeler | Alphacool Core Ocean T38 AIO 360mm |
Behuizing | Fractal Design Define 7 XL |
Moederbord VRM test - AM5 - 2024 |
|
---|---|
Cinebench 2024 MT - Gem. na 15 min. | 2.368 punten |
Cinebench 2024 MT - Std. afwijking | 28 punten |
Cinebench 2024 MT - Gem. kloksnelheid na 15min. | 5.271 MHz |
AIDA64 - CPU package power max. | 227,5 watt |
Max. VRM temp. na 15 min. - FLIR | 50,9 °C |
Max. VRM temp. na 15 min. | 50,9 °C |
Moederborden - Stroomgebruik 2024 |
|
---|---|
Energiegebruik - Idle - ATX - 12V | 1,15 watt |
Energiegebruik - Idle - ATX - 5V | 11,55 watt |
Energiegebruik - Idle - ATX - 3V | 2,15 watt |
Energiegebruik - Idle - EPS | 10,27 watt |
Energiegebruik - Idle - CPU (EPS+ATX12V) | 11,42 watt |
Energiegebruik - Idle - ATX + EPS | 25,12 watt |
Energiegebruik - Cinebench 24 - ATX - 12V | 15,52 watt |
Energiegebruik - Cinebench 24 - ATX - 5V | 20,19 watt |
Energiegebruik - Cinebench 24 - ATX - 3V | 2,88 watt |
Energiegebruik - Cinebench 24 - EPS | 202,51 watt |
Energiegebruik - Cinebench 24 - CPU (EPS+ATX12V) | 218,03 watt |
Energiegebruik - Cinebench 24 - ATX + EPS | 241,10 watt |
