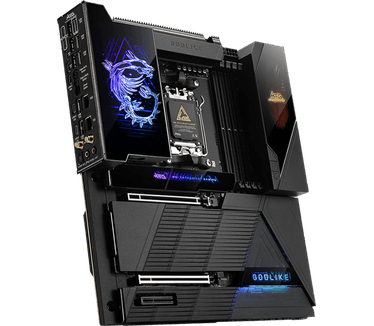

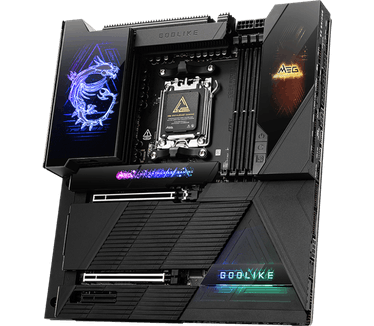

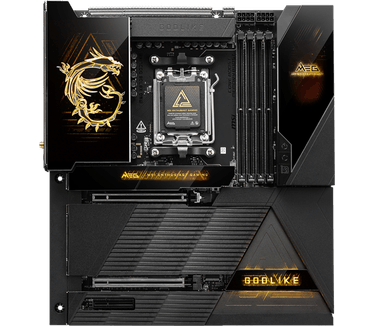

Name: MSI MEG X870E GODLIKE
Brand: MSI
Rating: 5 (1 reviews)

Specificaties en productafbeeldingen

Populaire specificaties
Socket	AM5
Moederbordchipset	AMD X870E
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	1x Ethernet 5Gbps, 1x Ethernet 10G/1G

Socket en CPU
Socket	AM5

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	AMD X870E

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	256GB
Overklokprofielen	AMD EXPO
Opmerkingen geheugen	Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x2), 2x M.2 (PCI-e 4.0 x4), 2x M.2 (PCI-e 5.0 x4)
Aantal gekoelde M.2 slots	5x
Raid-modi	0, 1, 10
Opmerkingen opslag	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. * Supports additional 2x M.2 up to PCIe 5.0 x4 via M.2 card. ** Please refer to the manual for M.2 SSD heatsink restrictions. •Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 4.0 x4, 2x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details.

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.4

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2, 10Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
USB/TB extern	8x USB 3.2 (Gen2, 10Gb/s) type-A, 5x USB 3.2 (Gen2, 10Gb/s) type-C, 2x USB 4 (Gen 3x2, 40Gbps)
Video uit	2x USB type-C
Totaal video-uitgangen	2
Hoogste DisplayPort versie	DisplayPort 1.4

(Fan) headers
Headers (fan/water)	3x 4-pins (totaal)
(default) Fanconfiguratie	1x CPU Fan 2x Combo Fan (Pump_Sys Fan)

RGB
RGB-headers	1x 3-pins (ARGB)
LED verlichting

Overige eigenschappen
Onboard knoppen	Clear CMOS
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds, LCD/OLED-display

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC4082 + ESS9219Q

Duurzaamheid
Meegeleverde extra's moederbord	Papieren handleiding

Verbeter productgegevens

Testrapport uit het Tweakers Testlab

Moederbord VRM test - AM5 - 2024
Cinebench 2024 MT - Gem. na 15 min.	2.149 punten
Cinebench 2024 MT - Std. afwijking	34 punten
Cinebench 2024 MT - Gem. kloksnelheid na 15min.	5.191 MHz
AIDA64 - CPU Temp. na 15 min.	80,0 °C
AIDA64 - CPU package power max.	199,6 watt
Max. VRM temp. na 15 min. - Moederbord sensor	51 °C
Max. VRM temp. na 15 min. - FLIR	49,7 °C
Max. VRM temp. na 15 min.	51,0 °C

Moederborden - Stroomgebruik 2024
Energiegebruik - Idle - ATX - 12V	3,42 watt
Energiegebruik - Idle - ATX - 5V	29,30 watt
Energiegebruik - Idle - ATX - 3V	6,42 watt
Energiegebruik - Idle - EPS	13,94 watt
Energiegebruik - Idle - CPU (EPS+ATX12V)	17,36 watt
Energiegebruik - Idle - ATX + EPS	53,08 watt
Energiegebruik - Cinebench 24 - ATX - 12V	15,42 watt
Energiegebruik - Cinebench 24 - ATX - 5V	37,80 watt
Energiegebruik - Cinebench 24 - ATX - 3V	6,36 watt
Energiegebruik - Cinebench 24 - EPS	187,12 watt
Energiegebruik - Cinebench 24 - CPU (EPS+ATX12V)	202,54 watt
Energiegebruik - Cinebench 24 - ATX + EPS	246,70 watt
