Populaire specificaties |
|
---|---|
|
AM5 |
|
AMD X670 |
|
ATX (Standard) |
|
4x DDR5 |
|
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|
1x Ethernet 2.5Gbps |
Socket en CPU |
|
---|---|
|
AM5 |
Form factor, bios en chipset |
|
---|---|
|
ATX (Standard) |
|
AMD X670 |
Geheugen |
|
---|---|
|
4x DDR5 |
|
128GB |
Opmerkingen geheugen |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD® Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
Opslag |
|
---|---|
|
2x M.2 (PCI-e 4.0 x4), 3x M.2 (PCI-e 5.0 x4), 6x SATA-600 |
|
0, 1, 10 |
Opmerkingen opslag |
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) 6 x SATA 6Gb/s ports *AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. **Performance may vary depending on the SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support list. |
M.2 op CPU | WEL op cpu |
Uitbreidingsslots |
|
---|---|
|
1x PCI-e 4.0 x1, 2x PCI-e 5.0 x16 |
|
2x |
Opmerkingen uitbreidingsslots |
AMD Ryzen™ 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)* AMD X670 Chipset 1 x PCIe 4.0 x1 slots * When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only. |
Netwerk |
|
---|---|
|
1x Ethernet 2.5Gbps |
Netwerkcontroller | Intel I225-V |
Netwerkcontroller(s) | I225-V |
Wifi en bluetooth |
|
---|---|
|
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|
Bluetooth 5.3 |
Aansluitingen |
|
---|---|
USB/TB intern (front) | 3x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header |
|
8x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C, 2x USB 4 (Gen 3x2, 40Gbps) |
|
1x HDMI, 2x USB type-C |
Totaal video-uitgangen | 3 |
Hoogste HDMI versie | HDMI 2.1 |
Opmerkingen aansluitingen |
Rear USB (Total 12 ports) 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®) Front USB (Total 11 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)* 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports *To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported. 1 x HDMI® port* 2 xUSB4® ports support USB Type-C® display outputs** *Supports 4K@60Hz as specified in HDMI 2.1. **VGA resolution support depends on processors' or graphic cards' resolution. |
(Fan) headers |
|
---|---|
Headers (fan/water) | 1x 4-pins (totaal) |
(default) Fanconfiguratie |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header |
RGB |
|
---|---|
RGB-headers | 1x 4-pins (RGB) |
Opmerkingen RGB headers |
3 x Addressable Gen 2 headers 1 x AURA RGB header |
|
|
LED kleur | Multi-color |
Overige eigenschappen |
|
---|---|
Onboard knoppen | Clear CMOS, Power |
Eigenschappen moederbord | BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield |
Foutdiagnose | HEX-display |
Audio |
|
---|---|
Audio kanalen | 8 (7.1) |
Audio-aansluitingen | 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang) |
Audiochip | Realtek ALC4082 |
Vrm |
|
---|---|
|
110A |
|
18x |
|
1.980A |
|
Heatsink (passief) |
Garantie en bijzonderheden |
|
---|---|
Fabrieksgarantie | 3 jaar carry in |
Meer informatie |
|
---|---|

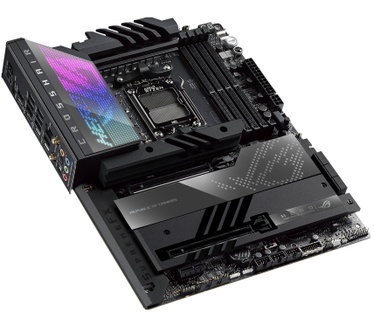

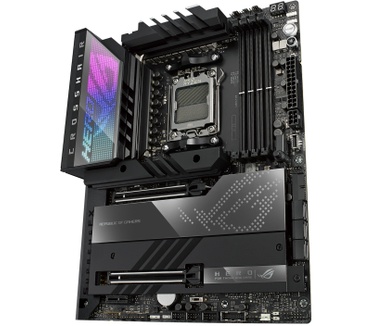

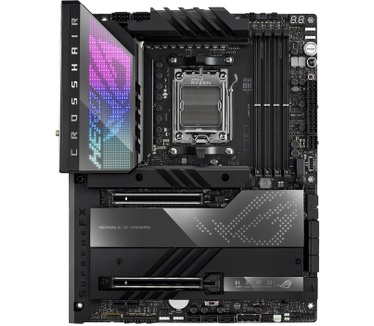

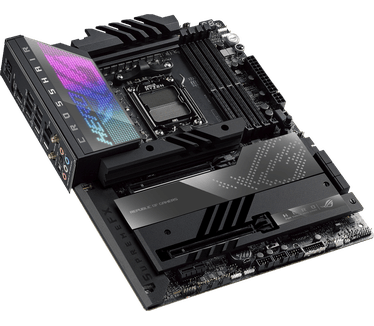

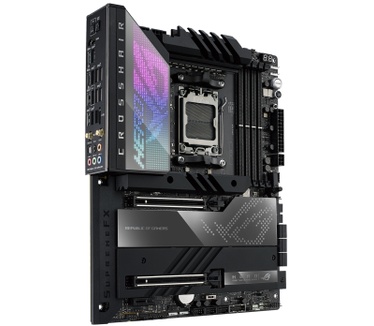

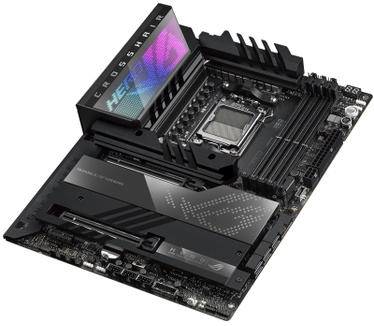

Product | ASUS ROG Crosshair X670E Hero |
Categorie | Moederborden |
Merk | ASUS |
Serie | ROG |
Tweakers ID | 1867026 |
EAN | 4711081862420 |
SKU | 90MB1BC0-M0EAY0 |
Specs van de fabrikant | Productinformatie |
