Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 1.050,- op 19 juli 2023.
Specificaties
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
EATX (Extended ATX) -
Geheugentype (moederbord)
4x DDR5 - Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 10G/5G/2.5G/1G/100M
Belangrijkste specificaties
-
Socket
1700 -
Moederbordchipset
Intel Z690 -
Form Factor
EATX (Extended ATX) -
Geheugentype (moederbord)
4x DDR5 - Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 10G/5G/2.5G/1G/100M
Verkrijgbaar sinds: 13 augustus 2022
Alles openen
Socket en CPU
-
Socket
1700
Form factor, bios en chipset
-
Form Factor
EATX (Extended ATX) -
Moederbordchipset
Intel Z690
Geheugen
-
Geheugentype (moederbord)
4x DDR5 -
Maximum grootte werkgeheugen
128GB -
Opmerkingen geheugen
4x DDR5 memory slots, supporting up to 128GB
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6666+ MHz
1DPC 2R Max speed up to 5600+ MHz > 6000+ MHz
2DPC 1R Max speed up to 4000+ MHz > 5600+ MHz
2DPC 2R Max speed up to 4000+ MHz > 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Please refer to www.msi.com for more information on compatible memory.
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x4), 4x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 6x SATA-600 - Aantal M.2 heatsinks 6x
-
Raid-modi
0, 1, 5, 10 -
Opmerkingen opslag
6x SATA 6Gb/s ports (From Z690 chipset)
SATA5~8 (From Z690 chipset)
SATAA~B (From ASM1061)
6x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From CPU) [2]
Supports up to PCIe 5.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_4 slot (From Z690 chipset) [3]
Supports up to PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_5 slot (From Z690 chipset) [1]
Supports up to PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_6 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2, M2_4, M2_5 and M2_6 slots support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
[1]SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
[2]M2_3 will be unavailable when installing device in the PCI_E2 slot.
[3]PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 4.0 x4, 1x PCI-e 5.0 x8, 1x PCI-e 5.0 x16 -
Totaal PCI-e x16
1x -
Opmerkingen uitbreidingsslots
3x PCIe x16 slots
Supports x16/x0/x4, x8/x8/x4
PCI_E1 supports PCIe 5.0 x16 (From CPU) [1]
PCI_E2 supports PCIe 5.0 x8 (From CPU)[2]
PCI_E3 supports PCIe 4.0 x4 (From Z690 chipset)[3]
[1]PCI_E1 will run at x8 speed when install M.2 PCIe SSD in the M2_3 slot
[2]M2_3 will be unavailable when installing device in the PCI_E2 slot
[3]PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps, 1x Ethernet 10G/5G/2.5G/1G/100M - Netwerkcontroller Marvell AQtion AQC113CS
- Tweede netwerkcontroller Intel I225-V
- Netwerkcontroller(s) AQC113CS, I225-V
Wifi en bluetooth
- Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
-
Bluetooth
Bluetooth 5.2

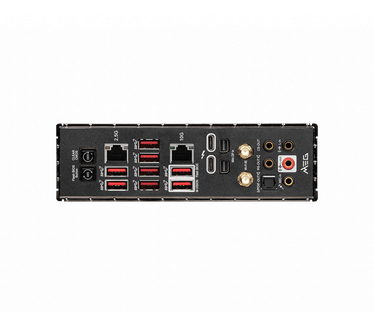

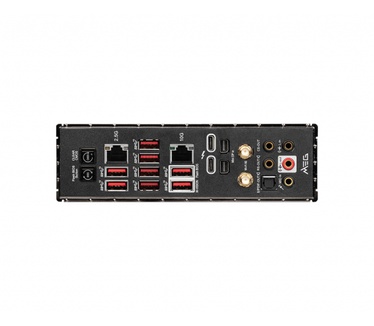

Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 2x USB-C 3.2 (G2x2, 20Gbit/s) header
-
USB/TB extern
2x Thunderbolt 4 type-C, 8x USB 3.2 (Gen2, 10Gb/s) type-A -
Video uit
2x Thunderbolt 4 - Totaal video-uitgangen 2
- Video in (voor TB/USB-c) 2x Mini DisplayPort
- Hoogste DisplayPort versie DisplayPort 1.4
-
Opmerkingen aansluitingen
Intel® Z690 Chipset
2x USB 3.2 Gen 2x2 20Gbps Type-C internal connectors
4x USB 3.2 Gen 2 10Gbps ports on the back panel
Hub-GL3590
4x USB 3.2 Gen 2 10Gbps ports on the back panel
ASM1074
4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors
Hub-GL850G
4x USB 2.0 ports through internal USB connectors
(Fan) headers
- Headers (fan/water) 10x 4-pins (totaal)
-
(default) Fanconfiguratie
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
RGB
- RGB-headers 2x 3-pins (ARGB), 1x 4-pins (RGB)
- Opmerkingen RGB headers 1x 3-pin CORSAIR LED connector
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Clear CMOS
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield, Nvidia NVLink (SLI)
- Foutdiagnose/display Diagnose-leds, HEX-display, LCD/OLED-display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC4082 + ESS ES9218PQ
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
105A -
Aantal VCore-powerstages
20x -
Rating VCore-vrm
2.100A -
Vrm-koeling
Heatsink (passief)
Meer informatie
- Product MSI MEG Z690 GODLIKE
- Categorie Moederborden
- Merk MSI
- Tweakers ID 1849710
- EAN 4719072886486
- SKU BZ04-001R, MEG Z690 GODLIKE
- Specs van de fabrikant Productinformatie
