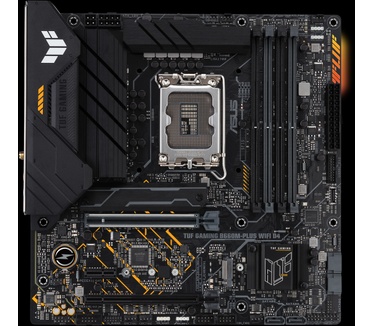

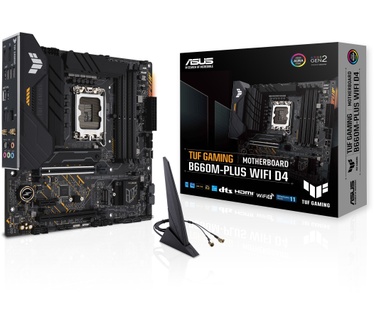

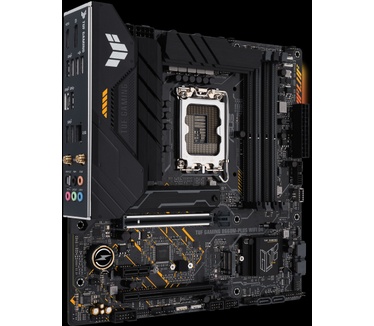

Name: ASUS TUF Gaming B660M-Plus WiFi D4
Brand: ASUS
Rating: 5 (1 reviews)

Specificaties en productafbeeldingen

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	Intel B660

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Opmerkingen geheugen	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 4.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	1x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x16, 1x PCI-e 4.0 x1, 1x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.2

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt header, 1x USB-C 3.2 (G1, 5Gbit/s) header
USB/TB extern	2x USB 2.0 type-A, 1x USB 3.2 (Gen1, 5Gb/s) type-A, 4x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)
(default) Fanconfiguratie	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers

Overige eigenschappen
Eigenschappen moederbord	Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)

Verbeter productgegevens

Testrapport uit het Tweakers Testlab

Testcondities
Processor	Intel Core i7 12700K
Geheugen	Corsair Dominator Platinum 32GB DDR4-3600C16
HDD / SSD	Gigabyte NVMe SSD 256GB
Fixed CPU freq. throttle
CPU freq. throttle (XMP
vBIOS	1009
Unlimited CPU freq. throttle

Moederbord VRM Test - Max Powerlimit
All core frequentie tijdens load	4.700 MHz
CB 23 Multi - Gem. na 15 min.	22.042 punten
CB 23 Multi - Std. afwijking	846 punten
CB 23 Multi - Systeemverbruik - Max.	290 watt
CPU verbruik - 8-Pin EPS12V	213,5 watt
AIDA64 - CPU Temp. na 15 min.	85,0 °C
AIDA64 - CPU Vcore	1,255 volt
AIDA64 - CPU package power max.	184,8 watt
Max. VRM temp. na 15 min. - FLIR	55 °C
Powerlimit 1 (PL1)	4.095 watt
Powerlimit 2 (PL2)	4.095 watt

Moederbord VRM Test - Handmatige PL1 en PL2 limiet
All core frequentie tijdens load	3.200 MHz
CB 23 Multi - Gem. na 15 min.	14.751 punten
CB 23 Multi - Std. afwijking	610 punten
CB 23 Multi - Systeemverbruik - Max.	128 watt
CPU verbruik - 8-Pin EPS12V	76,4 watt
AIDA64 - CPU Temp. na 15 min.	39,0 °C
AIDA64 - CPU Vcore	0,951 volt
AIDA64 - CPU package power max.	65,8 watt
Max. VRM temp. na 15 min. - FLIR	35 °C
Powerlimit 1 (PL1)	65 watt
Powerlimit 2 (PL2)	65 watt

Moederbord test 2020 - Standaard test met XMP
Stock - Systeemverbruik - Idle (gemiddelde 5 min.)	50 watt
Stock - Systeemverbruik Cinebench 20 max.	290 watt
