Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 479,- op 18 maart 2024.
Specificaties
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD X570 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
AM4 -
Moederbordchipset
AMD X570 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 28 november 2021
Alles openen
Socket en CPU
-
Socket
AM4
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
AMD X570
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
64GB -
Opmerkingen geheugen
4x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC 1
Max frequency by A-XMP OC mode:
For Ryzen™ 5000 G-Series & 4000 G-Series processors
1DPC 1R Max speed up to 5300 MHz (support overclocking up to 5500+ MHz)
1DPC 2R Max speed up to 4266 MHz
2DPC 1R Max speed up to 4400 MHz
2DPC 2R Max speed up to 3600 MHz
For Ryzen™ 5000 Series & 3000 Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 4000 MHz
2DPC 1R Max speed up to 4000 MHz
2DPC 2R Max speed up to 3600 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Opslag
-
Hardeschijf bus (intern)
3x M.2 (PCI-e 4.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 8x SATA-600 - Aantal M.2 heatsinks 4x
-
Raid-modi
0, 1, 10 -
Opmerkingen opslag
8x SATA 6Gb/s ports (From X570 chipset) [1]
4x M.2 slots (Key M)
Supports PCIe 4.0 / PCIe 3.0
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
Support SATA 6Gbps (For M2_1, M2_3 & M2_4)
M2_1 (From processor)
Supports 2280/ 22110 storage devices
M2_2 (From X570 chipset)
Supports 2260/ 2280 storage devices
M2_3 1 (From X570 chipset)
Supports 2280/ 22110 storage devices
M2_4 1 (From X570 chipset)
Supports 2260/ 2280 storage devices
[1] PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth. - M.2 op CPU WEL op cpu
Uitbreidingsslots
-
Uitbreidingsslots
1x PCI-e 3.0 x1, 3x PCI-e 4.0 x16 -
Totaal PCI-e x16
3x -
Opmerkingen uitbreidingsslots
Supports PCIe 4.0 / PCIe 3.0
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
2x PCIe x16 slots (From processor)
PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors
PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors
1x PCIe x16 slot (From X570 chipset)
PCI_E4 supports x8 [1]
1x PCIe x1 slot (From X570 chipset) [2]
[1]PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth.
[2]The PCIe x1 slot and onboard Wi-Fi module share the same bandwidth, you can not use both of them simultaneously, and the default setting is the Wi-Fi module for the system. Please disable the Onboard Wi-Fi Module Control in BIOS if you want to use the PCIe x1 slot.
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Realtek RTL8125B
- Netwerkcontroller(s) Realtek RTL8125B
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) - Wifi-controller Intel Wi-Fi 6E AX210
Aansluitingen
- USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2, 10Gbit/s) header
-
USB/TB extern
4x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 3x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C - Overige aansluitingen 1x TPM header
(Fan) headers
- Headers (fan/water) 8x 4-pins (totaal)
RGB
- RGB-headers 2x 3-pins (ARGB), 1x 4-pins (RGB)
- Opmerkingen RGB headers 1x 3-pin CORSAIR connector
-
LED verlichting
- LED kleur Multi-color
Overige eigenschappen
- Onboard knoppen Clear CMOS, Power, Reset
- Eigenschappen moederbord AMD Crossfire, BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield, Nvidia NVLink (SLI)
- Foutdiagnose/display Diagnose-leds, HEX-display
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
- Audiochip Realtek ALC4082 + ESS SABRE9018Q2C
Vrm
-
Type stroomvoorziening
Powerstages -
VCore-powerstages
90A -
Aantal VCore-powerstages
16x -
Rating VCore-vrm
1.440A -
Vrm-koeling
Heatsink (passief)
Meer informatie

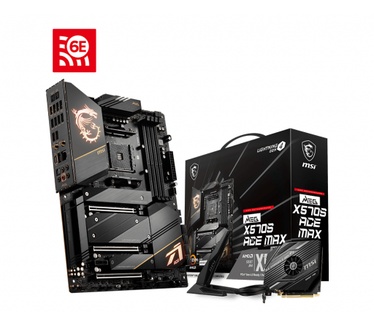

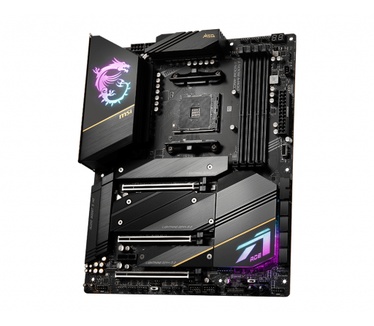

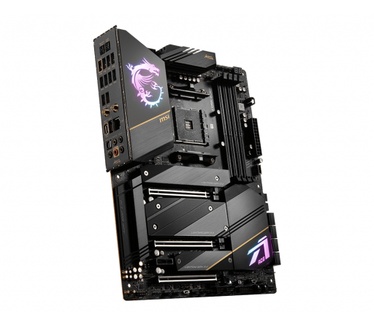

- Product MSI MEG X570S ACE MAX
- Categorie Moederborden
- Merk MSI
- Tweakers ID 1772460
- EAN 4719072872397
- SKU 7D50-001R, MEG X570S ACE MAX
- Specs van de fabrikant Productinformatie
