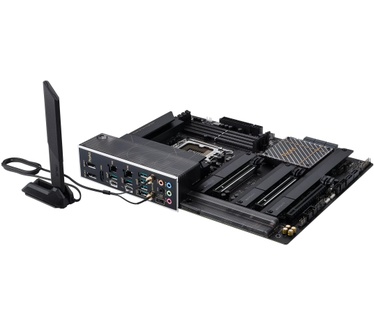

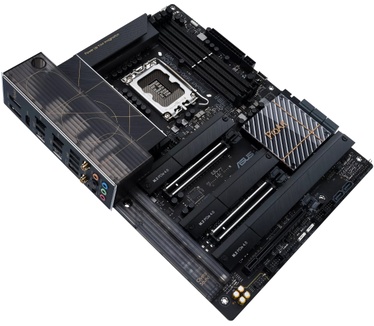

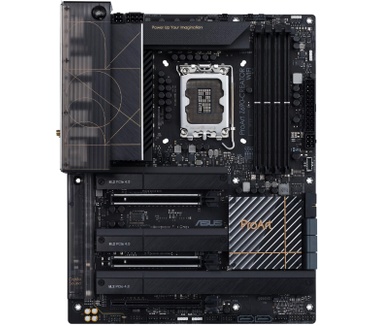

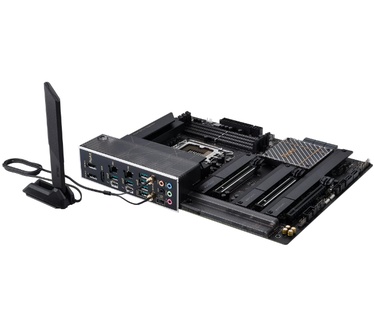

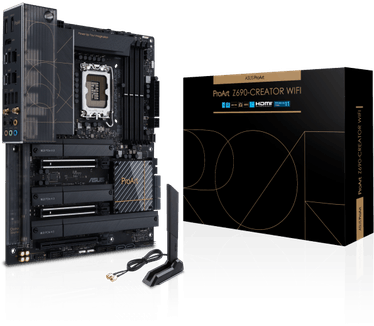

ASUS ProArt Z690-CREATOR WIFI

Populaire specificaties
Socket	1700
Moederbordchipset	Intel Z690
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z690

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	128GB
Opmerkingen geheugen	4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 8x SATA-600
Aantal gekoelde M.2 slots	4x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports De opmerking M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4. Is ter verduidelijking aangevuld "share bandwidth with" blijft foute omschrijving omdat het OF-OF is. Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)*** 8 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x16, 2x PCI-e 5.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	Intel® 12th Gen Processors* 2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) * Supports PCIe bandwidth bifurcation for RAID on CPU function, please refer to PCIe bifurcation & M.2 setting in PCIe x16 slot (from CPU) table on support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIE slot

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G
Netwerkcontroller	Marvell AQtion (variant)
Tweede netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	Intel (variant), Marvell AQtion (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.2

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
USB/TB extern	2x Thunderbolt 4 type-C, 6x USB 3.2 (Gen2, 10Gb/s) type-A
Video uit	1x HDMI, 1x USB type-C
Totaal video-uitgangen	2
Video in (voor TB/USB-c)	2x DisplayPort
Hoogste HDMI versie	HDMI 2.1
Overige aansluitingen	1x TPM header
Opmerkingen aansluitingen	2x Displayport ingang voor Thunderbolt 4 video Displayport 1.4 uit via USB-C

(Fan) headers
Headers (fan/water)	8x 4-pins (totaal)
(default) Fanconfiguratie	1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s)

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC S1220A

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	70A
Aantal VCore-powerstages	16x
Rating VCore-vrm	1.120A
Vrm-koeling	Heatsink (passief)

Garantie en bijzonderheden
Fabrieksgarantie	3 jaar carry in

Meer informatie
Product	ASUS ProArt Z690-CREATOR WIFI
Categorie	Moederborden
Merk	ASUS
Serie	ProArt
Tweakers ID	1761216
EAN	0195553460736, 4711081460732
SKU	90MB19H0-M0EAY0, ProArt Z690-CREATOR WIFI
Specs van de fabrikant	Productinformatie

Testrapport uit het Tweakers Testlab

Lees meer over hoe Tweakers producten test.

Testcondities
Processor	12900K
Fixed CPU freq. throttle
CPU freq. throttle (XMP
Fixed Vcore (BIOS)	1.22
LLC level	level 6
vBIOS	0702

Moederbord VRM Test - Fixed BIOS Settings
Cinebench 20 Multithreaded - Gem. na 15 min.	10.615 punten
Cinebench 20 Multithreaded - Std. afwijking	6 punten
Systeemverbruik Cinebench 20 max.	292 watt
CPU verbruik - 8-Pin EPS12V	195,8 watt
AIDA64 - CPU Temp. na 15 min.	80,0 °C
AIDA64 - CPU Vcore	1,208 volt
AIDA64 - CPU package power max.	217,7 watt
Max. VRM temp. na 15 min. - Moederbord sensor	53 °C
Max. VRM temp. na 15 min. - FLIR	48,3 °C
Multimeter - CPU Vcore VRM	1,217 volt
Multimeter - CPU Vcore Socket	1,198 volt
BIOS - CPU Vcore	1,22000 volt

Moederbord test 2020 - Standaard test met XMP
Stock - Cinebench 20 Multithreaded	10.526 Cinebench-punten
Stock - Cinebench 20 Multithreaded - Kloksnelheid	4.900 MHz
Stock - Cinebench 20 Multithreaded - Vcore	1,234 volt
Stock - Systeemverbruik - Idle (gemiddelde 5 min.)	50 watt
Stock - Systeemverbruik Cinebench 20 max.	305 watt
