Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 356,73 op 23 april 2024.
Specificaties
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel Z590 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 - Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel Z590 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 - Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 8 juni 2021
Alles openen
Socket en CPU
-
Socket
1200
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
Intel Z590
Geheugen
-
Geheugentype (moederbord)
4x DDR4 -
Maximum grootte werkgeheugen
128GB
Opslag
-
Hardeschijf bus (intern)
1x M.2 (PCI-e 3.0 x4), 2x M.2 (PCI-e 4.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600 -
Raid-modi
0, 1, 5, 10
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x4, 1x PCI-e 4.0 x16 -
Totaal PCI-e x16
1x -
Opmerkingen uitbreidingsslots
1x PCIe x16 slot (PCI_E2, from CPU)
Supports up to PCIe 4.0 x16 with11th Gen CPU1
Supports up to PCIe 3.0 x16 with10th Gen CPU1
1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)2
2x PCIe 3.0 x1 slots (from Z590 chipset)
PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS selection.PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.
6x SATA 6Gb/s ports (from Z590 chipset)
4x M.2 slots (Key M)
M2_1 (from CPU)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21, M2_32 slots
Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)3
Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)4
M2_2 supports 2242/ 2260/ 2280 storage devices
M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices
M2_4 slot (from Z590 chipset) 3 5
Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot.Intel® Optane™ Memory Ready. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.PCIe 4.0 specification is available only on 11th Gen Intel® CPU.PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps - Netwerkcontroller Intel I225-V
- Netwerkcontroller(s) I225-V
Wifi en bluetooth
- Wi-Fi generatie Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
-
Bluetooth
Bluetooth 5.2 - Wifi-controller Intel Wi-Fi 6E AX210
Aansluitingen
-

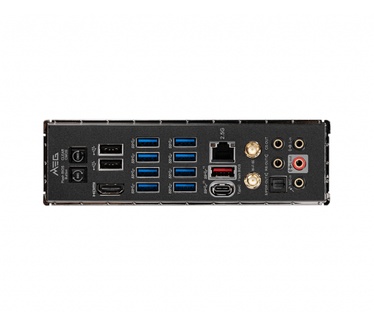

Video uit
1x HDMI - Totaal video-uitgangen 1
- Overige aansluitingen 1x TPM header
(Fan) headers
- Headers (fan/water) 7x 4-pins (totaal)
RGB
-
LED verlichting
Overige eigenschappen
- Eigenschappen moederbord AMD Crossfire
Audio
- Audio kanalen 8 (7.1)
- Audio-aansluitingen 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
- Audiochip Realtek ALC4080
Meer informatie

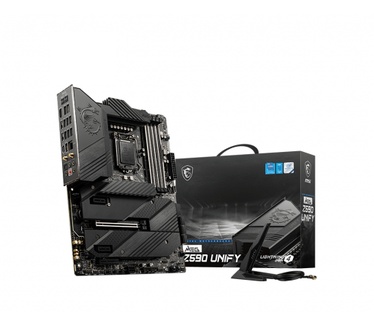

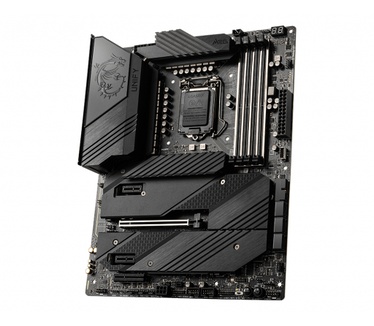

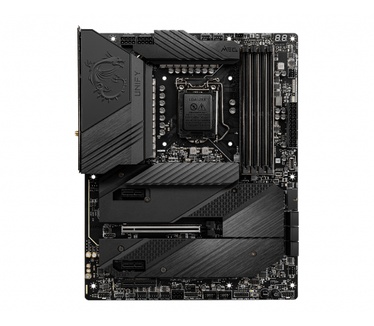

- Product MSI MEG Z590 UNIFY
- Categorie Moederborden
- Merk MSI
- Tweakers ID 1711944
- EAN 4719072822194
- SKU 7D38-001R, MEG Z590 UNIFY
- Specs van de fabrikant Productinformatie
