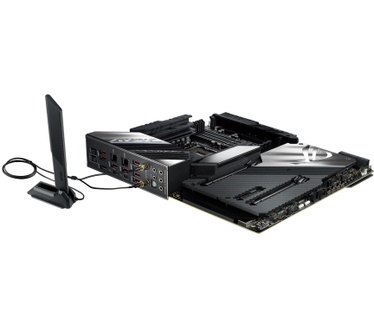

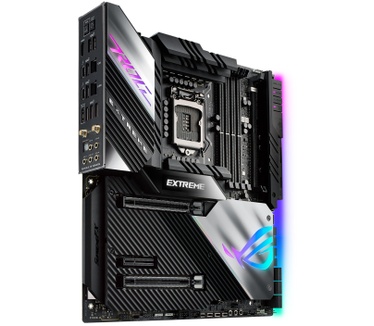

ASUS ROG Maximus XIII Extreme

Populaire specificaties
Socket	1200
Moederbordchipset	Intel Z590
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 3.0 x4), 3x M.2 (PCI-e 4.0 x4), 6x SATA-600

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 4.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 11th Core™ processors support PCIe 4.0 x4 mode - Intel® 10th Core™ processors support PCIe 3.0 x4 mode M.2_2 slot (Key M), type 2242/2260/2280 - Intel® 11th Core™ processors support PCIe 4.0 x4 mode - Intel® 10th Core™ processors support PCIe 3.0 x4 mode M.2_3 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)* 6 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode. 2 x PCIe 4.0/3.0 x16 (x16, x8/x8) Intel® 11th & 10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s) - Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s) - Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot* * PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G
Netwerkcontroller	Marvell AQtion AQC107
Tweede netwerkcontroller	Intel I225-V
Netwerkcontroller(s)	AQC107, I225-V

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.2
Wifi-controller	Intel Wi-Fi 6E AX210

Aansluitingen
USB/TB extern	2x Thunderbolt 4 type-C
Video uit	1x HDMI, 2x Thunderbolt 4
Totaal video-uitgangen	3

(Fan) headers
Headers (fan/water)	4x 4-pins (totaal)

RGB
LED verlichting

Overige eigenschappen
Eigenschappen moederbord	Nvidia NVLink (SLI)

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC4082

Meer informatie
Product	ASUS ROG Maximus XIII Extreme
Categorie	Moederborden
Merk	ASUS
Serie	ROG
Tweakers ID	1690570
EAN	4711081110248
SKU	90MB15S0-M0EAY0, ROG Maximus XIII Extreme
Specs van de fabrikant	Productinformatie

Testrapport uit het Tweakers Testlab

Lees meer over hoe Tweakers producten test.

Testcondities
Geheugen	Corsair CMT32GX4M4Z3600C16
Fixed CPU freq. throttle
CPU freq. throttle (XMP
Fixed Vcore (BIOS)	1.339
LLC level	Level 6
vBIOS	0707

Moederbord VRM Test - Fixed BIOS Settings
Cinebench 20 Multithreaded - Gem. na 15 min.	6.184 punten
Cinebench 20 Multithreaded - Std. afwijking	5 punten
Systeemverbruik Cinebench 20 max.	348 watt
CPU verbruik - 8-Pin EPS12V	235,9 watt
AIDA64 - CPU Temp. na 15 min.	84,0 °C
AIDA64 - CPU Vcore	1,350 volt
AIDA64 - CPU package power max.	224,6 watt
Max. VRM temp. na 15 min. - Thermocouple	45 °C
Max. VRM temp. na 15 min. - Moederbord sensor	48 °C
Max. VRM temp. na 15 min. - FLIR	49,0 °C
Multimeter - CPU Vcore VRM	1,371 volt
Multimeter - CPU Vcore Socket	1,350 volt
BIOS - CPU Vcore	1,33900 volt
VRM Temp. thermocouple #1	45 °C
VRM Temp. thermocouple #2	45 °C
VRM Temp. thermocouple #3	43 °C

Moederbord test 2020 - Standaard test met XMP
Stock - Cinebench 20 Multithreaded	5.959 Cinebench-punten
Stock - Cinebench 20 Multithreaded - Kloksnelheid	4.800 MHz
Stock - Cinebench 20 Multithreaded - Vcore	1,234 volt
Stock - Systeemverbruik - Idle (gemiddelde 5 min.)	74 watt
Stock - Systeemverbruik Cinebench 20 max.	281 watt
