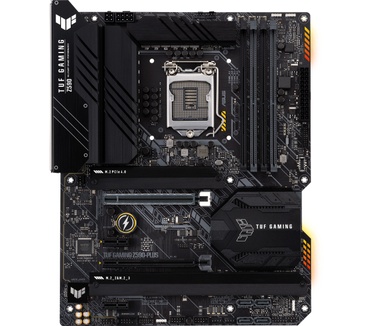

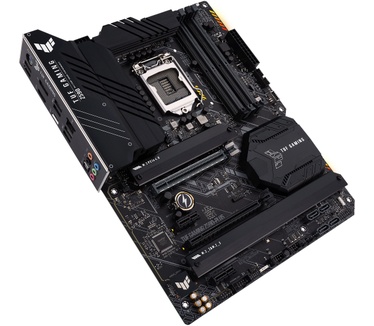

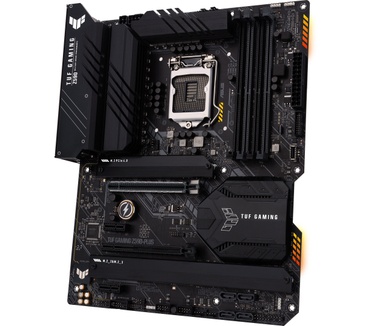

ASUS TUF Gaming Z590-PLUS

Populaire specificaties
Socket	1200
Moederbordchipset	Intel Z590
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**** 6 x SATA 6Gb/s ports * Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. **** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled. Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Intel I225-V
Netwerkcontroller(s)	I225-V

Aansluitingen
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.0
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x PS/2

(Fan) headers
Headers (fan/water)	5x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC S1200A

Meer informatie
Product	ASUS TUF Gaming Z590-PLUS
Categorie	Moederborden
Merk	ASUS
Serie	TUF Gaming
Tweakers ID	1673340
EAN	4711081111252
SKU	90MB16B0-M0EAY0, TUF GAMING Z590-PLUS
Specs van de fabrikant	Productinformatie

Testrapport uit het Tweakers Testlab

Lees meer over hoe Tweakers producten test.

Testcondities
Fixed CPU freq. throttle
CPU freq. throttle (XMP
Fixed Vcore (BIOS)	1.35
LLC level	Level 6
vBIOS	0811

Moederbord VRM Test - Fixed BIOS Settings
Cinebench 20 Multithreaded - Gem. na 15 min.	6.218 punten
Cinebench 20 Multithreaded - Std. afwijking	9 punten
Systeemverbruik Cinebench 20 max.	335 watt
CPU verbruik - 8-Pin EPS12V	247,2 watt
AIDA64 - CPU Temp. na 15 min.	84,0 °C
AIDA64 - CPU Vcore	1,350 volt
AIDA64 - CPU package power max.	237,0 watt
Max. VRM temp. na 15 min. - Thermocouple	56 °C
Max. VRM temp. na 15 min. - Moederbord sensor	57 °C
Max. VRM temp. na 15 min. - FLIR	55,4 °C
Multimeter - CPU Vcore VRM	1,382 volt
Multimeter - CPU Vcore Socket	1,353 volt
BIOS - CPU Vcore	1,35000 volt
VRM Temp. thermocouple #1	47 °C
VRM Temp. thermocouple #2	48 °C
VRM Temp. thermocouple #3	56 °C

Moederbord test 2020 - Standaard test met XMP
Stock - Cinebench 20 Multithreaded	5.963 Cinebench-punten
Stock - Cinebench 20 Multithreaded - Kloksnelheid	4.800 MHz
Stock - Cinebench 20 Multithreaded - Vcore	1,236 volt
Stock - Systeemverbruik - Idle (gemiddelde 5 min.)	64 watt
Stock - Systeemverbruik Cinebench 20 max.	263 watt
