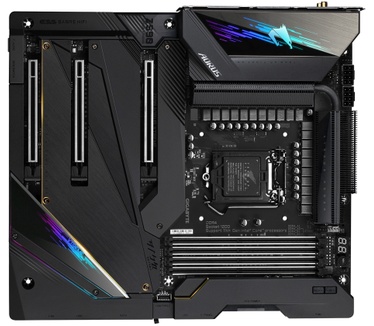

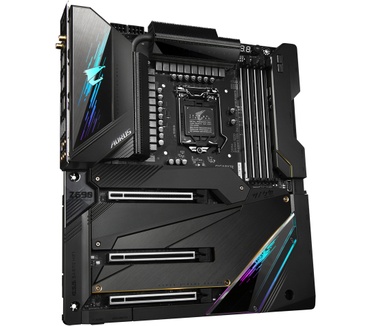

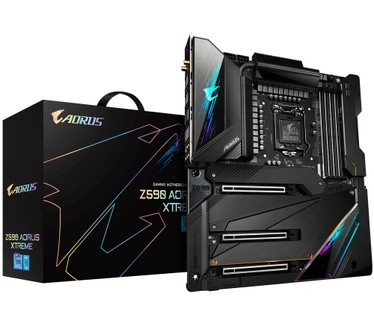

Name: Gigabyte Z590 Aorus Xtreme
Brand: Gigabyte

Specificaties en productafbeeldingen

Populaire specificaties
Socket	1200
Moederbordchipset	Intel Z590
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Compatible modules	ECC

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600
Raid-modi	0, 1, 5, 10

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x16, 2x PCI-e 4.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G
Netwerkcontroller	Marvell AQtion (variant)
Tweede netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	Intel (variant), Marvell AQtion (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.2
Wifi-controller	Intel Wi-Fi 6E AX210

Aansluitingen
USB/TB extern	4x Thunderbolt 4 type-C
Video uit	1x DisplayPort, 1x HDMI, 2x Thunderbolt 4
Totaal video-uitgangen	4
Hoogste HDMI versie	HDMI 1.4
Hoogste DisplayPort versie	DisplayPort 1.4

(Fan) headers
Headers (fan/water)	9x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC1220-VB

Verbeter productgegevens

Testrapport uit het Tweakers Testlab

Moederbord VRM Test - Fixed BIOS Settings
Cinebench 20 Multithreaded - Gem. na 15 min.	6.180 punten
Cinebench 20 Multithreaded - Std. afwijking	3 punten
Systeemverbruik Cinebench 20 max.	337 watt
CPU verbruik - 8-Pin EPS12V	234,8 watt
AIDA64 - CPU Temp. na 15 min.	82,0 °C
AIDA64 - CPU Vcore	1,341 volt
AIDA64 - CPU package power max.	245,3 watt
Max. VRM temp. na 15 min. - Thermocouple	41 °C
Max. VRM temp. na 15 min. - Moederbord sensor	41 °C
Max. VRM temp. na 15 min. - FLIR	43,5 °C
Multimeter - CPU Vcore VRM	1,382 volt
Multimeter - CPU Vcore Socket	1,349 volt
BIOS - CPU Vcore	1,34000 volt
VRM Temp. thermocouple #1	41 °C
VRM Temp. thermocouple #2	40 °C
VRM Temp. thermocouple #3	40 °C

Moederbord test 2020 - Standaard test met XMP
Stock - Cinebench 20 Multithreaded	5.957 Cinebench-punten
Stock - Cinebench 20 Multithreaded - Kloksnelheid	4.800 MHz
Stock - Cinebench 20 Multithreaded - Vcore	1,206 volt
Stock - Systeemverbruik - Idle (gemiddelde 5 min.)	68 watt
Stock - Systeemverbruik Cinebench 20 max.	249 watt
