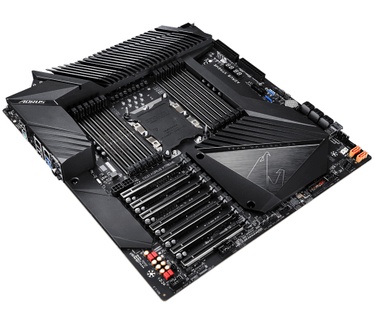

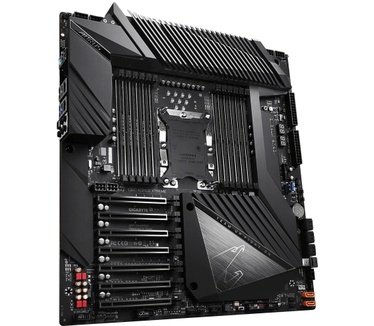

Gigabyte C621 Aorus Xtreme

Populaire specificaties
Socket	3647
Moederbordchipset	Intel C621
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	12x DDR4
Ethernet (RJ45)	2x Ethernet 1Gbps
Uitbreidingsslots	7x PCI-e 3.0 x16

Socket en CPU
Socket	3647

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	Intel C621

Geheugen
Geheugentype (moederbord)	12x DDR4
Maximum grootte werkgeheugen	192GB
Compatible modules	ECC, Registered

Opslag
Hardeschijf bus (intern)	8x SATA-600, 1x U.2 (Gen3, 32Gb/s)
Raid-modi	0, 1, 5, 10

Uitbreidingsslots
Uitbreidingsslots	7x PCI-e 3.0 x16
Totaal PCI-e x16	7x
Opmerkingen uitbreidingsslots	2 x PCI Express x16 slots, running at x16 (PCIEX16_1/2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. 4 x PCI Express x16 slots, running at x8 (PCIEX8_1/2/3/4) * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_3 with PCIEX16_2. When PCIEX8_1/PCIEX8_3 is populated, PCIEX16_1/PCIEX16_2 operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Netwerk
Ethernet (RJ45)	2x Ethernet 1Gbps
Netwerkcontroller	Intel (variant)
Tweede netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	Intel (variant)

Aansluitingen
Overige aansluitingen	1x PS/2, 1x TPM header

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)

RGB
LED verlichting

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire, Nvidia NVLink (SLI)

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC1220-VB

Meer informatie
Product	Gigabyte C621 Aorus Xtreme
Categorie	Moederborden
Merk	Gigabyte
Serie	AORUS
Tweakers ID	1567806
EAN	0471933180563, 4719331805630
SKU	C621 AORUS XTREME
Specs van de fabrikant	Productinformatie
