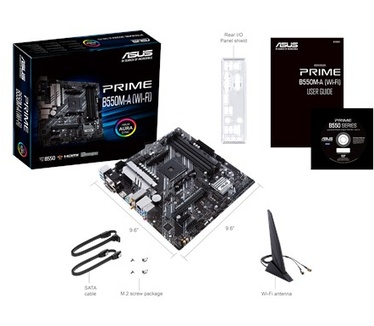

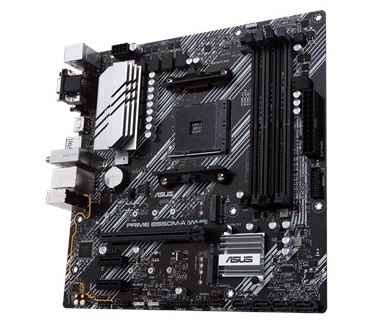

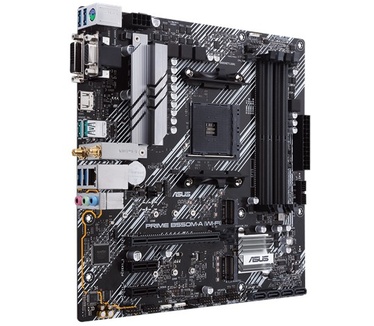

ASUS Prime B550M-A (WI-FI)

Populaire specificaties
Socket	AM4
Moederbordchipset	AMD B550
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 1Gbps

Socket en CPU
Socket	AM4

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	AMD B550

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Compatible modules	ECC
Opmerkingen geheugen	4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4 + SATA), 4x SATA-600
Raid-modi	0, 1, 10
Opmerkingen opslag	Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 4.0 x16
Totaal PCI-e x16	1x
Opmerkingen uitbreidingsslots	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Realtek RTL8111H
Netwerkcontroller(s)	Realtek RTL8111H

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.1

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header
USB/TB extern	4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A
Video uit	1x DVI-D, 1x HDMI, 1x VGA (D-Sub)
Totaal video-uitgangen	3
Overige aansluitingen	1x PS/2

(Fan) headers
Headers (fan/water)	4x 4-pins (totaal)

RGB
RGB-headers	1x 3-pins (ARGB), 2x 4-pins (RGB)
LED verlichting

Overige eigenschappen
Eigenschappen moederbord	BIOS update zonder cpu (via USB)
Foutdiagnose

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC887

Vrm
Type stroomvoorziening	Losse mosfets
Vrm-koeling	Heatsink (passief), Nee
Vrm-opmerkingen	Controller: ASP1106GGQW

Meer informatie
Product	ASUS Prime B550M-A (WI-FI)
Categorie	Moederborden
Merk	ASUS
Tweakers ID	1564266
EAN	4718017602563
SKU	90MB14D0-M0EAY0, PRIME-B550M-A-WI-FI
