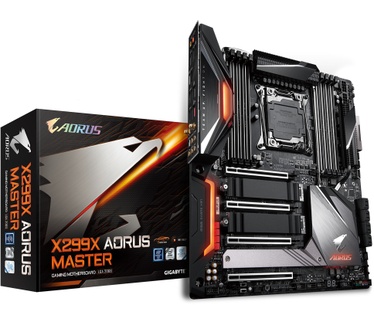

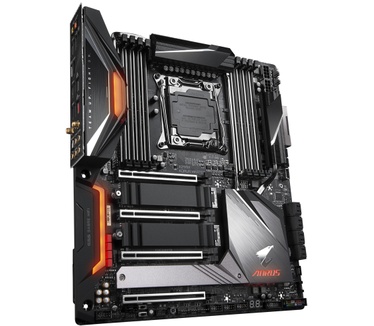

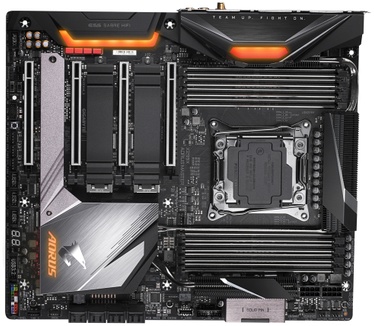

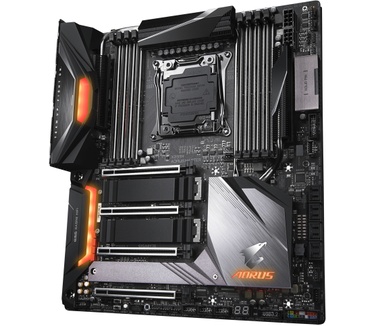

Gigabyte X299X Aorus Master

Populaire specificaties
Socket	2066
Moederbordchipset	Intel X299
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	8x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 1Gbps, 1x Ethernet 5Gbps

Socket en CPU
Socket	2066

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	Intel X299

Geheugen
Geheugentype (moederbord)	8x DDR4
Maximum grootte werkgeheugen	256GB

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 2x M.2 (PCI-e 3.0 x4), 8x SATA-600
Raid-modi	0, 1, 5, 10

Uitbreidingsslots
Uitbreidingsslots	4x PCI-e 3.0 x16
Totaal PCI-e x16	4x
Opmerkingen uitbreidingsslots	Expansion Slots Intel® Core™ X series 48-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode. Intel® Core™ X series 44-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8_1) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode. Intel® Core™ X series 28-lane processors: 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps, 1x Ethernet 5Gbps
Netwerkcontroller	Marvell AQtion (variant)
Tweede netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	Intel (variant), Marvell AQtion (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0

Aansluitingen
Overige aansluitingen	1x TPM header

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire, Dual BIOS, Nvidia NVLink (SLI)

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC1220-VB

Meer informatie
Product	Gigabyte X299X Aorus Master
Categorie	Moederborden
Merk	Gigabyte
Tweakers ID	1486693
EAN	4719331806996
SKU	X299X AORUS MASTER
Specs van de fabrikant	Productinformatie
